M80-8661222

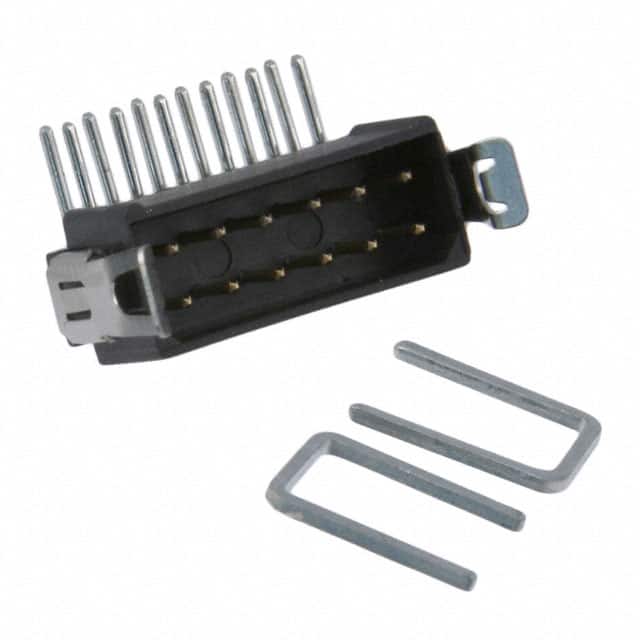

The M80-8661222 is a Datamate L-Tek high-reliability male header from Harwin Inc. It features 12 positions (6+6) arranged in 2 rows at a 2.00mm pitch. The connector is mounted through hole with a right-angle orientation, making it suitable for board-to-board or cable-to-board applications where space is constrained.

This shrouded header employs a 4-wall design with integrated latch lock for secure mating. Contacts are made of phosphor bronze with gold plating on the mating area and tin-lead on the termination tails. The insulation is black glass-filled polyester rated UL94 V-0. The connector operates from -55°C to 125°C and is rated for 120V.

Electrical ratings: 3.3A per contact at 25°C ambient (single contact energized), derated to 3.0A when all contacts are energized. At 85°C, the rating drops to 2.6A (single contact) and 2.2A (all contacts). The contact resistance and insulation resistance values are not provided in the available data.

The M80 series is part of the Datamate L-Tek family designed for high-density interconnects. The header includes strain relief clips and is compatible with mating female connectors from the same series. Standard package quantity is not verified; consult factory for ordering details.
