| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | 0926 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

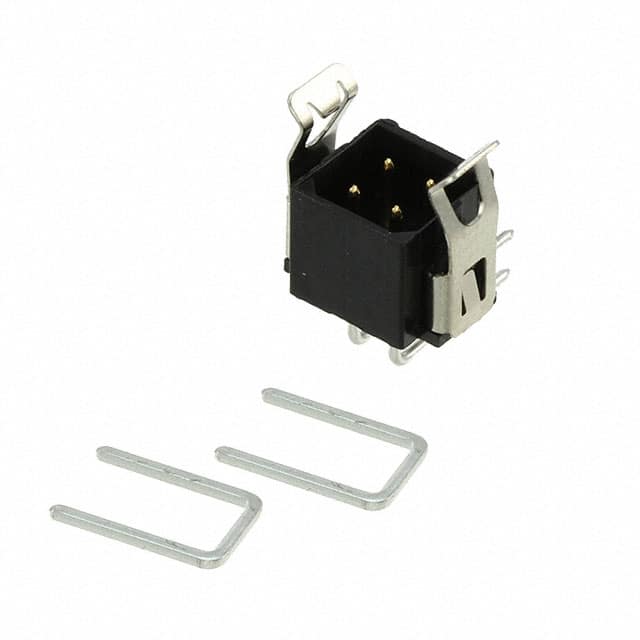

The Harwin M80-8660422 is a Datamate L-Tek series 4 position (2+2) male plug header designed for board-to-board or cable-to-board interconnections. It features a 2.00mm pitch, double row configuration, and a right angle through hole mounting style with solder termination. The connector is fully shrouded with a 4-wall design and includes latch lock fastening for secure mating.
Electrical ratings include a maximum current of 3.0A per contact at 25°C ambient (all contacts) and a voltage rating of 120V. The operating temperature range is -55°C to 125°C. The insulator is black polyester, glass filled with a UL94 V-0 flammability rating. Contacts are phosphor bronze with a tin-lead finish and a thickness of 0.75µm.
This connector is suitable for high-reliability applications requiring a compact, polarized, and latching interconnect solution. The right angle orientation allows for low-profile board-to-board connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.58 | $5.58 |
| 32+ | $4.37 | $4.37 |
| 128+ | $3.96 | $3.96 |
| 512+ | $3.59 | $3.59 |
| 1,024+ | $3.42 | $3.42 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.00mm (0.079 inches).
The maximum current rating is 3.0A per contact at 25°C ambient (all contacts), derating to 2.2A at 85°C ambient.
The voltage rating is 120V.
The mounting type is through hole, right angle.
The operating temperature range is -55°C to 125°C.
Yes, it features a latch lock fastening type.
