| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
48 pcs
|
48 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

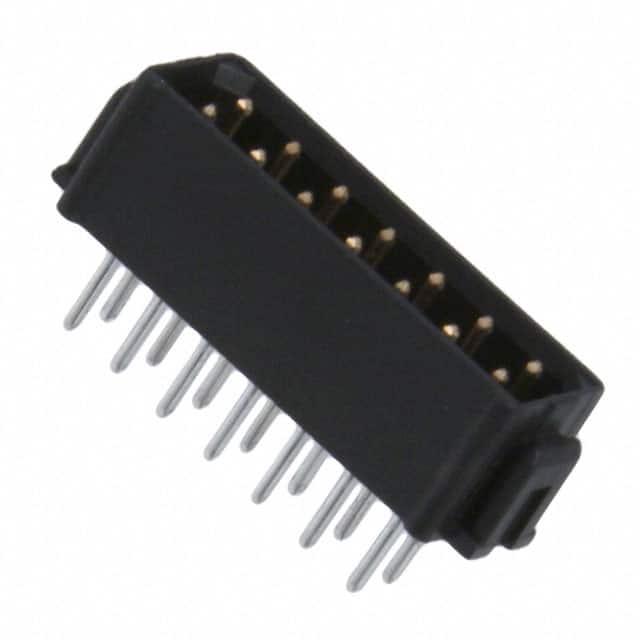

The Harwin M80-8541442 is a 14-position, 2-row, 2.00mm pitch through-hole male header from the Datamate series. It features a shrouded 4-wall design with a latch holder fastening type for secure board-to-board or cable connections. The header uses phosphor bronze contacts with tin plating (0.75µm) and is rated for up to 3.3A per contact at 25°C (2.6A at 85°C) and 800V. The insulation is black glass-filled PPS with UL94 V-0 flammability rating. Operating temperature range is -55°C to 125°C. This connector is suitable for high-density packaging in electronic equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.90 | $3.90 |
| 14+ | $3.24 | $3.24 |
| 112+ | $2.79 | $2.79 |
| 504+ | $2.51 | $2.51 |
| 1,008+ | $2.39 | $2.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
14 positions in 2 rows.
2.00mm (0.079 inches).
3.3A per contact at 25°C ambient (single contact), derated to 2.2A per contact when all contacts are energized at 85°C.
800V.
Through-hole with solder termination.
-55°C to 125°C.
Phosphor bronze contacts with tin plating (0.75µm).
