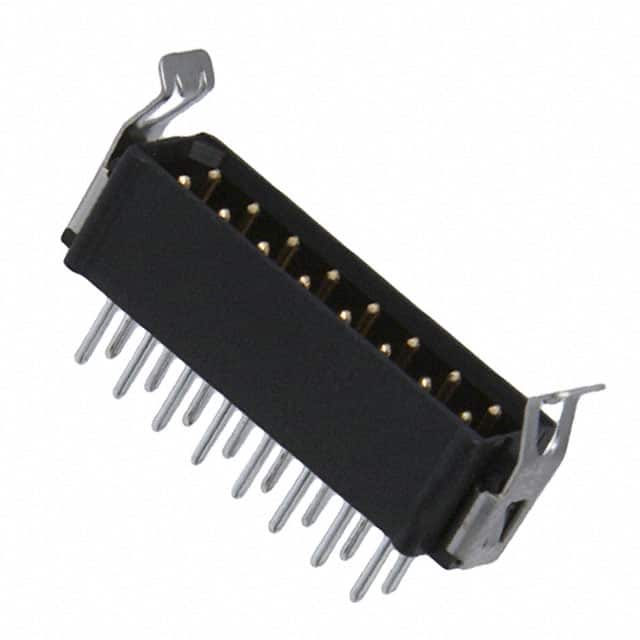

The Harwin M80-8531642 is a 16-position (8+8) male header from the Datamate L-Tek series, designed for high-reliability board-to-board or cable-to-board interconnections. It features a 2.00mm pitch, double-row configuration, and through-hole mounting with solder termination.
The connector is fully shrouded with a 4-wall design and includes a latch lock fastening system that requires tooling for separation, ensuring secure mating in demanding environments. The insulation is molded from glass-filled polyphenylene sulfide (PPS) with a UL94 V-0 flammability rating and a black color. Contact material is phosphor bronze with gold plating on mating surfaces and tin plating on termination areas, providing reliable electrical performance.
Electrical ratings include a maximum voltage of 800V and a current rating of 2.2A per contact when all contacts are loaded at 85°C ambient, or 3.3A per contact with a single contact loaded at 25°C. The operating temperature range spans -55°C to 125°C, making it suitable for a wide variety of industrial and commercial applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.15 | $6.15 |
| 13+ | $5.13 | $5.13 |
| 104+ | $4.43 | $4.43 |
| 507+ | $3.96 | $3.96 |
| 1,001+ | $3.78 | $3.78 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
16 positions (8+8).
2.00mm.
2.2A per contact when all contacts loaded at 85°C ambient, or 3.3A per contact with one contact loaded at 25°C.
800V.
Through hole with solder termination.
-55°C to 125°C.
Gold on mating contact areas, tin on terminations.
