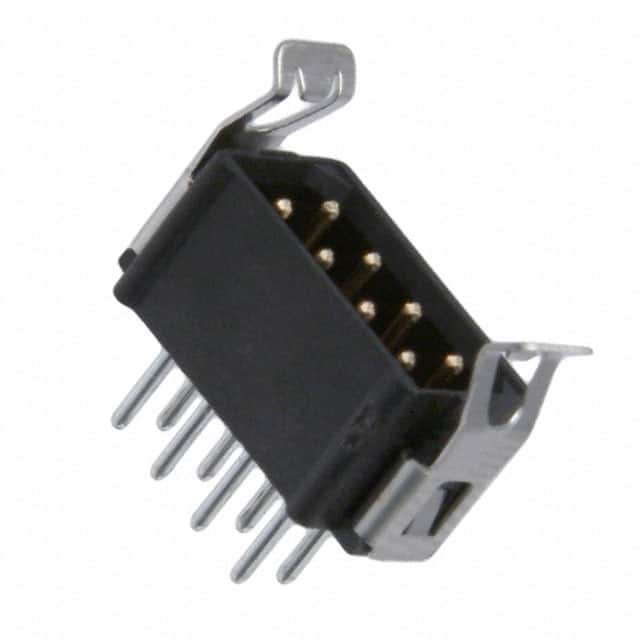

The M80-8530842 is a male pin header from Harwin Inc., part of the Datamate M80 series. It features 8 positions arranged in 2 rows with a 2mm pitch and 2mm row spacing, making it suitable for high-density board-to-board and cable-to-board applications. The connector is fully shrouded with a 4-wall design and includes a latch lock fastening system for secure mating.
The header uses through hole mounting with solder termination, ensuring reliable mechanical and electrical connections. Contacts are made of phosphor bronze with a tin finish (29.5µin thickness) and have a circular shape with a 3.00mm contact length. The insulation is black polyphenylene sulfide (PPS) glass-filled material with a height of 5.56mm, rated UL94 V-0 for flammability.
Electrically, the M80-8530842 is rated for 2.2A per contact at 85°C ambient (all contacts) and 3.0A per contact at 25°C ambient, with a voltage rating of 800V. It operates over a temperature range of -55°C to 125°C, making it suitable for demanding environments.
This connector is designed for use in high packing density electronic equipment where reliable interconnection is required. Its shrouded design and latch lock provide protection and secure mating in applications subject to vibration.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.88 | $4.88 |
| 21+ | $3.94 | $3.94 |
| 105+ | $3.51 | $3.51 |
| 504+ | $3.15 | $3.15 |
| 1,008+ | $3.00 | $3.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions.
2.00mm.
2.2A per contact at 85°C ambient (all contacts) and 3.0A per contact at 25°C ambient.
800V.
Through hole.
-55°C to 125°C.
Latch lock.
