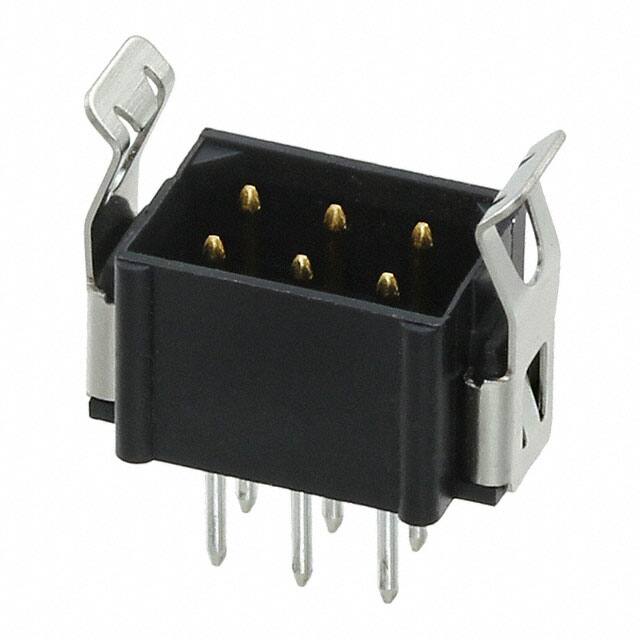

The Harwin M80-8530642 is a 6 position (3+3) male pin header from the Datamate L-Tek series, designed for high-reliability interconnections. This connector features a 2.00mm pitch with a shrouded 4-wall design and latch lock fastening, ensuring secure mating. The through hole mounting with solder termination provides robust mechanical attachment to PCBs.
Contacts are made of phosphor bronze with gold plating on the mating area (0.75µm) and tin on the termination tails. The insulation material is glass-filled polyphenylene sulfide (PPS) in black, rated UL94 V-0. The connector is rated for 800V and up to 3.3A per contact (single contact at 25°C). Operating temperature range is -55°C to 125°C.
This connector is suitable for board-to-board and cable-to-board applications requiring reliable locking. The latch lock mechanism requires a tool for disconnection, preventing accidental unmating.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.85 | $4.85 |
| 26+ | $3.85 | $3.85 |
| 104+ | $3.49 | $3.49 |
| 520+ | $3.12 | $3.12 |
| 1,014+ | $2.97 | $2.97 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 6 positions arranged as 3+3 in 2 rows.
The pitch is 2.00mm.
Up to 3.3A per contact (single contact at 25°C), 3.0A all contacts at 25°C, derated at 85°C to 2.6A single and 2.2A all contacts.
The voltage rating is 800V.
Through hole mounting.
-55°C to 125°C.
Yes, it features a latch lock fastening type.
