| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish - Mating | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

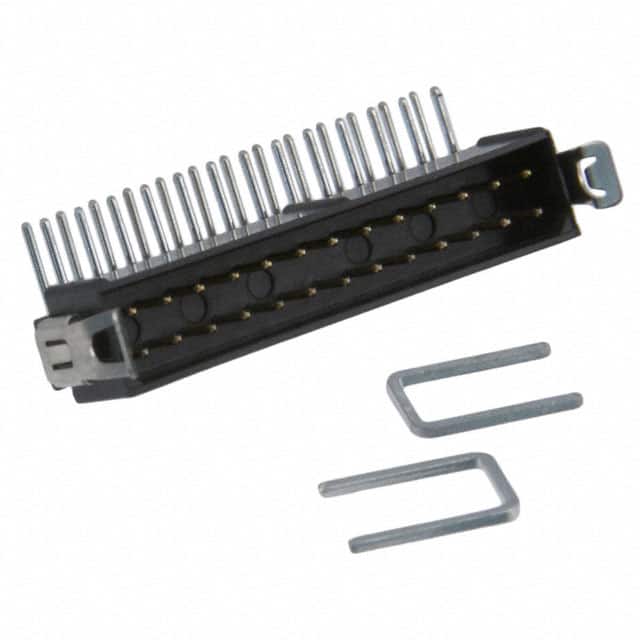

The Harwin M80-8512642 is a 26-position (13+13) male plug header from the Datamate L-Tek series, designed for right-angle through-hole mounting on a 2.00mm pitch. It features a shrouded 4-wall housing with latch lock fastening for secure mating and includes strain relief clips. The contacts are made of phosphor bronze with gold plating on the mating surfaces and tin plating on the solder terminations, ensuring reliable electrical performance and corrosion resistance.
This connector is rated for a maximum current of 3.0A when all contacts are loaded at 25°C ambient temperature, and 2.2A at 85°C. The operating temperature range spans from -55°C to 125°C, making it suitable for industrial environments. The insulation material is glass-filled polyphenylene sulfide (PPS) with UL94 V-0 flammability rating.
Suitable for board-to-board or cable-to-board interconnections, the M80-8512642 is commonly used in high-density electronic packaging equipment. Its right-angle orientation allows for low-profile connections parallel to the PCB surface. The latch lock mechanism provides positive retention without tools for separation.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.46 | $9.46 |
| 16+ | $7.78 | $7.78 |
| 104+ | $6.81 | $6.81 |
| 504+ | $6.10 | $6.10 |
| 1,000+ | $5.81 | $5.81 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
26 positions arranged in 2 rows (13+13).
2.00mm (0.079 inches).
3.0A maximum when all contacts are loaded at 25°C ambient; 2.2A maximum when all contacts are loaded at 85°C ambient.
800V, though the datasheet describes the connector series as low voltage. This value is unverified.
Through hole, right angle (horizontal) with solder termination.
-55°C to 125°C.
Gold (0.75µm) on mating contact surfaces; tin on termination area.
