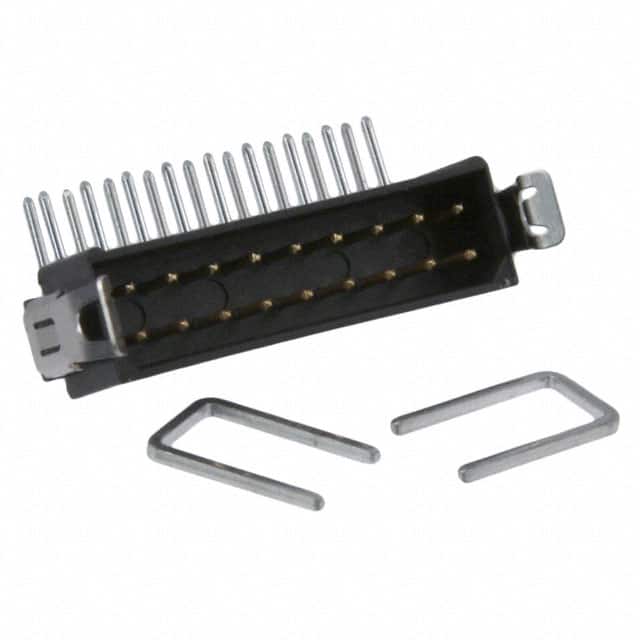

The Harwin M80-8511842 is a male pin header from the Datamate L-Tek series, designed for high-reliability board-to-board or cable-to-cable connections. It features 18 contacts arranged in 2 rows with a 2.00mm pitch. The connector is through-hole mounted with a right-angle orientation and soldered terminations.
The contact area is gold-plated (0.75µm) for low resistance, while the termination area is tin-plated. Contacts are made of phosphor bronze, and the insulation is glass-filled PPS (UL94 V-0). The header is fully shrouded with a 4-wall design and incorporates latch locks for secure mating, requiring tooling for disconnection.
Electrical rating: up to 3.3A per contact (single contact, 25°C) and 800V voltage rating. Operating temperature range is -55°C to 125°C. Additional features include strain relief clips. This connector is suitable for applications requiring robust and reliable interconnections in confined spaces.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.33 | $8.33 |
| 11+ | $7.03 | $7.03 |
| 110+ | $5.97 | $5.97 |
| 506+ | $5.36 | $5.36 |
| 1,001+ | $5.11 | $5.11 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
18 positions, arranged as 9+9 in two rows.
2.00mm (0.079 inches).
3.0A maximum when all contacts are loaded at 25°C ambient; 2.2A at 85°C. Single contact rating is 3.3A at 25°C.
800V maximum.
Through Hole, Right Angle.
-55°C to 125°C.
Gold on contact area (0.75µm thickness), Tin on terminations.
