M80-8511642

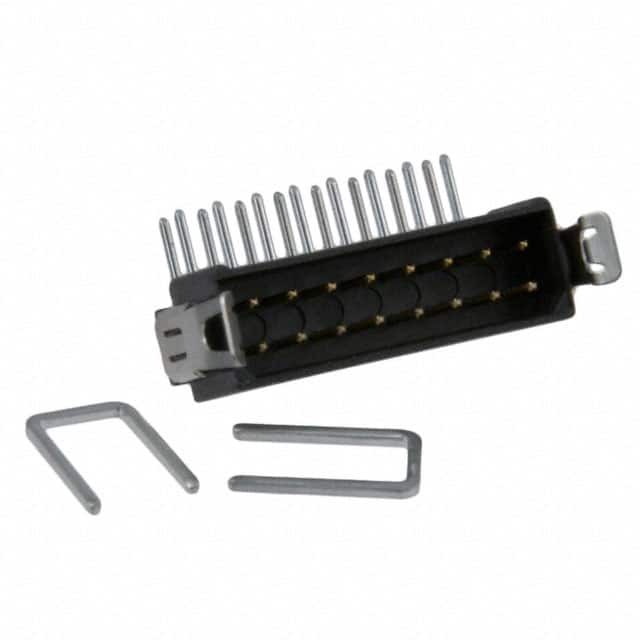

The M80-8511642 is a 16-position (8+8 dual row) male header from Harwin's Datamate L-Tek series. It features a 2.00mm pitch, right-angle through-hole mounting with 3.00mm solder tails. The connector is fully shrouded (4-wall) with a latch lock fastening mechanism, ensuring secure mating and preventing accidental disconnection. Contacts are made of phosphor bronze with gold plating on the mating area and tin on the terminations, providing reliable signal integrity and corrosion resistance.

Electrical ratings include a maximum current of 3.3A per contact at 25°C (one contact loaded) and 2.2A at 85°C (all contacts loaded). The voltage rating is 800V. The operating temperature range spans -55°C to 125°C, and the insulation material is glass-filled polyphenylene sulfide (PPS) with a UL94 V-0 flammability rating. The connector is designed for board-to-board or cable-to-board applications and includes strain relief clips.

This header is suitable for high-reliability industrial and electronic equipment requiring a compact, latchable connection. The right-angle form factor allows for low-profile board-to-board stacking or cable connections. The Datamate L-Tek series is known for its robust latching system and high contact density.
