| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
13 pcs
|
13 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Material | |
| Mounting Type | |
| Number of Positions | |
| Pitch | |
| SVHC Present | |
| Termination Style |

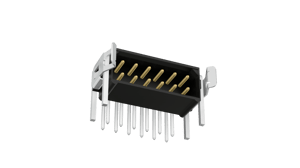

The Harwin M80-8511242 is a double-row, right-angle male plug connector from the Datamate L-Tek series. It offers 12 contacts arranged in a 6+6 configuration and features a 2.00mm pitch.
This connector is designed for through-board mounting with 3mm PCB terminations. The contact areas are finished with gold plating for reliability, while the terminations utilize a tin finish. It is equipped with locking latches, requiring tooling for separation of mated connectors.
Key specifications include 12 positions and a 2mm pitch. The mounting type is right-angle through-hole, suitable for direct PCB integration. The connector is part of the high-reliability Datamate L-Tek range.
This component is suitable for applications requiring a robust and reliable connection solution. Its through-hole termination style ensures a secure mechanical and electrical connection to the printed circuit board.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The M80-8511242 has 12 positions, configured as 6+6.
The pitch is 2.00 mm.
It uses through hole mounting with a right-angle orientation.
It has through hole termination, described as throughboard 3mm PCB terminations.
Contact areas are gold finished, and terminations have a tin finish.
