| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
28 pcs
|
28 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish - Mating | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

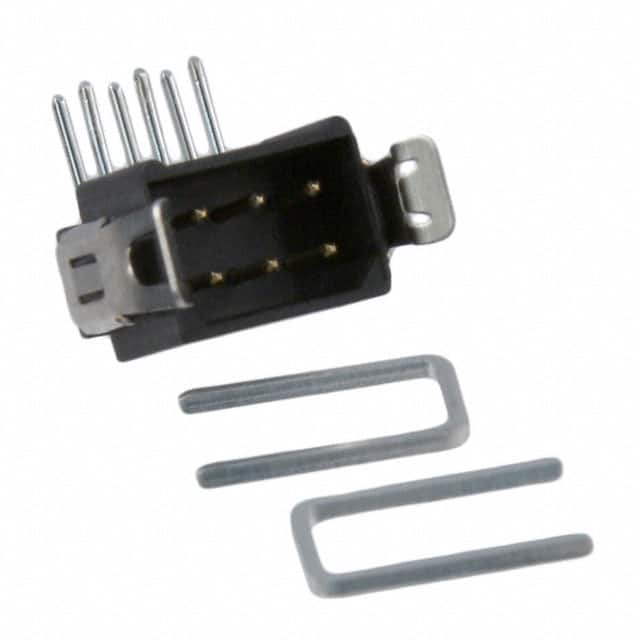

The M80-8510642 is a 6-position, 2-row, 2.00mm pitch right angle through hole header from Harwin's Datamate L-Tek series. It features a shrouded 4-wall design with latch lock fastening and strain relief clips, ensuring secure mating in high-vibration environments. The connector is rated for operating temperatures from -55°C to 125°C and has a voltage rating of 800V. Current rating varies with ambient temperature and number of contacts: up to 3.3A per contact at 25°C, derated to 2.2A for all contacts at 85°C.
Contacts are made of phosphor bronze with gold plating on the mating area (29.5µin thickness) and tin on the solder terminations. The insulation is black glass-filled PPS with UL94 V-0 flammability rating. This header is suitable for board-to-board or cable-to-board applications requiring high reliability and compact 2mm pitch spacing.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.54 | $6.54 |
| 26+ | $5.19 | $5.19 |
| 104+ | $4.71 | $4.71 |
| 520+ | $4.20 | $4.20 |
| 1,014+ | $4.01 | $4.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions.
2.00mm.
Up to 3.3A per contact at 25°C ambient, derated to 2.2A for all contacts at 85°C.
800V.
Through hole, right angle.
-55°C to 125°C.
Gold on mating area, tin on terminations.
