| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Length (Lead Length) | |
| Contact Type | |
| Current Rating (Maximum @ All contacts, 25 °C ambient) | |
| Current Rating (Maximum @ All contacts, 85 °C ambient) | |
| Current Rating (Maximum @ One contact, 25 °C ambient) | |
| Current Rating (Maximum @ One contact, 85 °C ambient) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

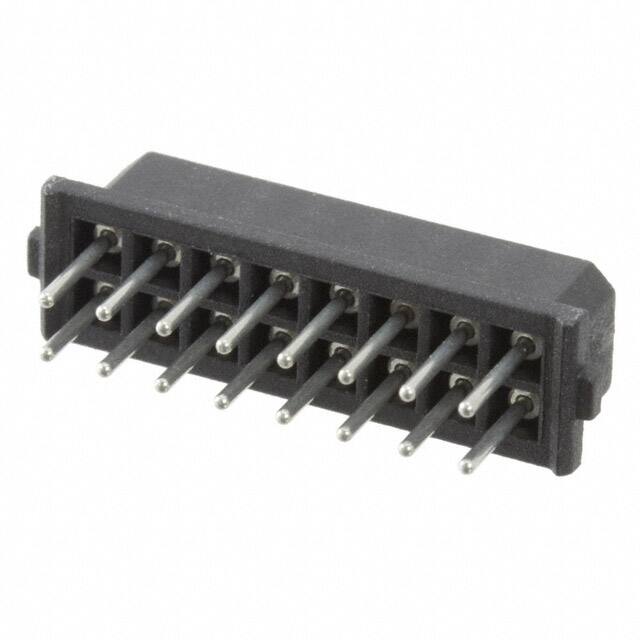

The Harwin M80-8501642 is a 16-position (8+8) female receptacle connector from the Datamate L-Tek series. It is designed for board-to-board or cable-to-board applications requiring high reliability. The connector features a 2.00mm pitch, double row configuration, and through hole mounting with 3.00mm solder terminations.
Key electrical specifications include a voltage rating of 800V and current ratings of 3.3A per contact (single contact at 25°C) and 3.0A for all contacts at 25°C. The operating temperature range is -55°C to 125°C. The contact finish is gold on mating areas and tin on terminations, with a contact finish thickness of 12.0µin (0.30µm).
The connector uses a locking ramp fastening type for secure mating. It is compatible with mated stacking heights of 7.23mm and 7.85mm. The insulation is black with a flammability rating of UL94 V-0. The connector is RoHS3 compliant and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $9.18 | $9.18 |
| 13+ | $7.66 | $7.66 |
| 104+ | $6.62 | $6.62 |
| 507+ | $5.92 | $5.92 |
| 1,001+ | $5.64 | $5.64 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
16 positions (8+8).
2.00mm.
3.3A per contact (single contact at 25°C) and 3.0A for all contacts at 25°C.
800V.
Through hole.
-55°C to 125°C.
