Mfr Part #:

M80-8501245R

Name: M80-8501245R
Brand: Harwin Inc.
SKU: M80-8501245R

Mfr Name: Harwin Inc.

Description:

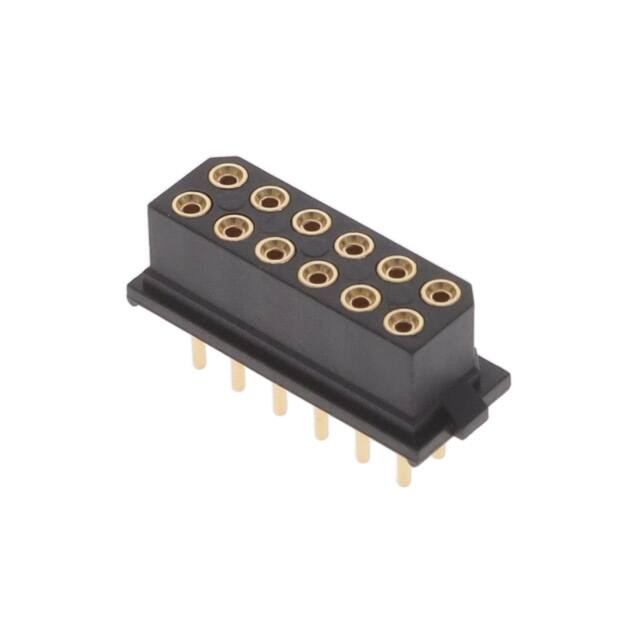

CONN RCPT 2MM 12POS PCB

Stock on Request

M80-8501245R Description

Short technical summary and product information.

CONN RCPT 2MM 12POS PCB

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

M80-8501245

Harwin Inc.

CONN RCPT 12POS 0.079 GOLD PCB

M80-8871205

Harwin Inc.

CONN RCPT 12POS 0.079 GOLD PCB

Category	Headers, Receptacles, Female Sockets
Manufacturer Name	Harwin Inc.
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	12.0碌in (0.30碌m)
Contact Length	0.118" (3.00mm)
Contact Type	Female Socket
Fastening Type	Locking Ramp
Insulation Color	Black
Insulation Height	0.202" (5.14mm)
Mated Stacking Heights	7.23mm, 7.85mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Pitch	0.079" (2.00mm)
Row Spacing	0.079" (2.00mm)
Style	Board to Board or Cable
Termination	Solder
Voltage Rating	800V
