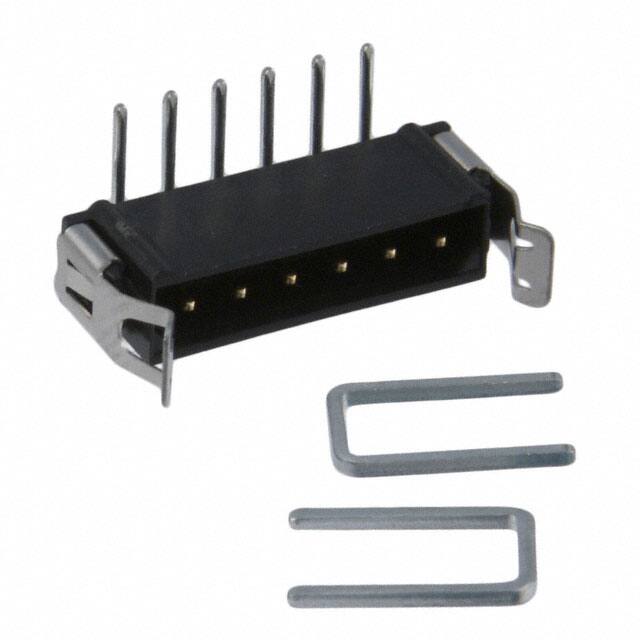

The M80-8420642 is a 6-position, single-row, right-angle through-hole header from Harwin's Datamate L-Tek series. It has a 2.00mm pitch and is designed for board-to-board or cable-to-cable applications. The connector is fully shrouded with a 4-wall design and features a latch lock for secure mating, along with strain relief clips.
Electrical specifications include a current rating of 3.0A per contact when all contacts are energized at 25°C ambient (2.2A at 85°C) and a voltage rating of 120V. The contacts are made of phosphor bronze with a gold finish on the mating area and tin on the termination area, providing reliable connectivity. The insulation is black glass-filled PPS (UL94 V-0), with a height of 3.96mm.
This header is suitable for high-density interconnection in industrial, automotive, and other applications requiring a robust right-angle connection. The operating temperature range is -55°C to 125°C. The through-hole mounting with solder termination ensures a strong mechanical bond to the PCB. The latch lock mechanism prevents accidental disconnection, and the strain relief clips protect the wires from stress.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.44 | $4.44 |
| 16+ | $3.65 | $3.65 |
| 112+ | $3.18 | $3.18 |
| 512+ | $2.86 | $2.86 |
| 1,008+ | $2.72 | $2.72 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The M80-8420642 has 6 positions.
The pitch is 2.00mm.
The current rating is 3.0A per contact at 25°C (all contacts) and 2.2A at 85°C.
The voltage rating is 120V.
It is through hole, right angle mounting.
The operating temperature range is -55°C to 125°C.
The contacts are phosphor bronze with gold plating on the mating area and tin on the termination area.
