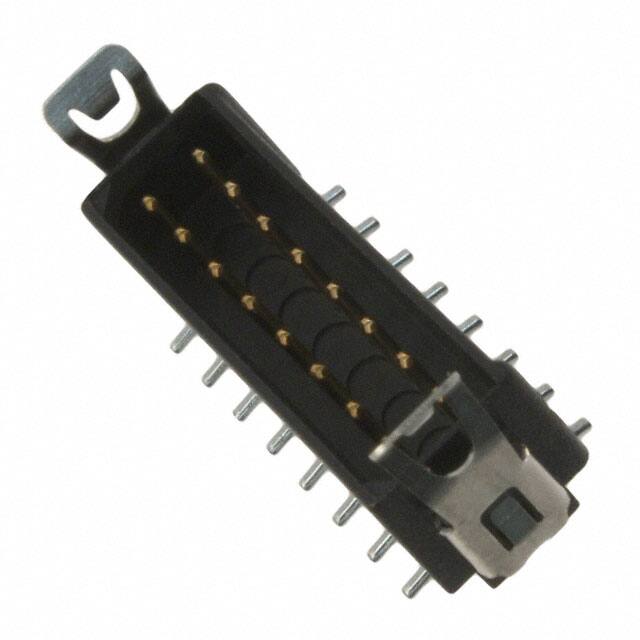

The M80-8281642 is a 16-position (8+8) male plug DIL straight surface mount connector from Harwin's Datamate L-Tek series. It features a 2.00mm pitch and 2 rows, with a shrouded 4-wall design and latch lock fastening for secure mating.
Rated current is 3.3A per contact at 25°C (single contact) and 2.2A when all contacts are energized at 85°C. Operating temperature range is -55°C to 125°C. Contacts are phosphor bronze with gold plating on mating areas and tin on terminations. Insulation is black glass-filled PPS with UL94 V-0 flammability rating.
This connector is suitable for board-to-board or cable-to-board applications. It is packaged in tubes and uses solder termination.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.84 | $6.84 |
| 13+ | $5.70 | $5.70 |
| 104+ | $4.92 | $4.92 |
| 507+ | $4.40 | $4.40 |
| 1,001+ | $4.20 | $4.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
16 positions (8+8).
2.00mm.
3.3A per contact at 25°C (single contact), 2.2A when all contacts energized at 85°C.
800V.
Surface mount.
-55°C to 125°C.
Glass-filled polyphenylene sulfide (PPS).
