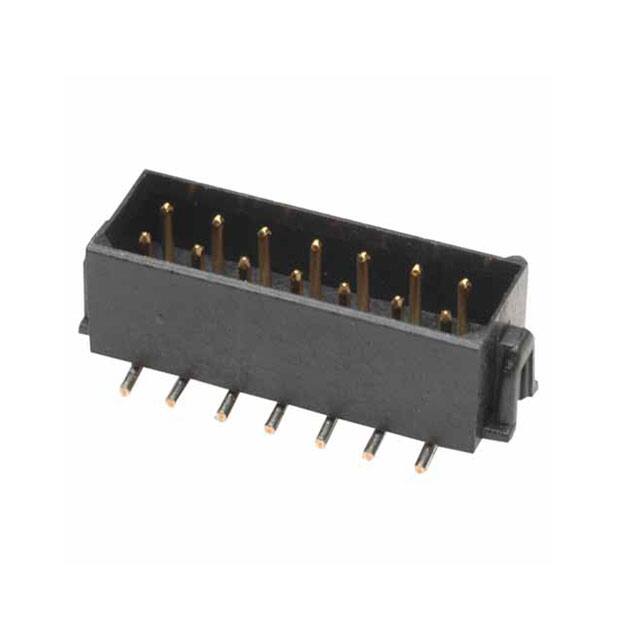

The Harwin M80-8262642 is a 26-position (13+13) male pin header from the Datamate L-Tek series. It features a 2.00mm pitch and 2.00mm row spacing, with a shrouded 4-wall design for robust mating. The connector is surface mount with solder termination, making it suitable for board-to-board or cable-to-board applications.
Electrical ratings include a maximum current of 3.0A per contact when all contacts are loaded at 25°C ambient, and 2.2A at 85°C. Single contact ratings are 3.3A at 25°C and 2.6A at 85°C. The voltage rating is 800V. Operating temperature range is -55°C to 125°C.
The contacts are made of phosphor bronze with gold plating on the mating area and tin on the terminations. The insulator is black glass-filled PPS with UL94 V-0 flammability rating. The connector is packaged in tubes and has no latches, compatible with strain relief straps M80-003.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.25 | $7.25 |
| 16+ | $5.96 | $5.96 |
| 104+ | $5.22 | $5.22 |
| 504+ | $4.67 | $4.67 |
| 1,000+ | $4.45 | $4.45 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
26 positions (13+13).
2.00mm (0.079").
3.0A per contact when all contacts loaded at 25°C, 2.2A at 85°C.
800V.
Surface mount.
-55°C to 125°C.
Gold on mating area, Tin on terminations.
