| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

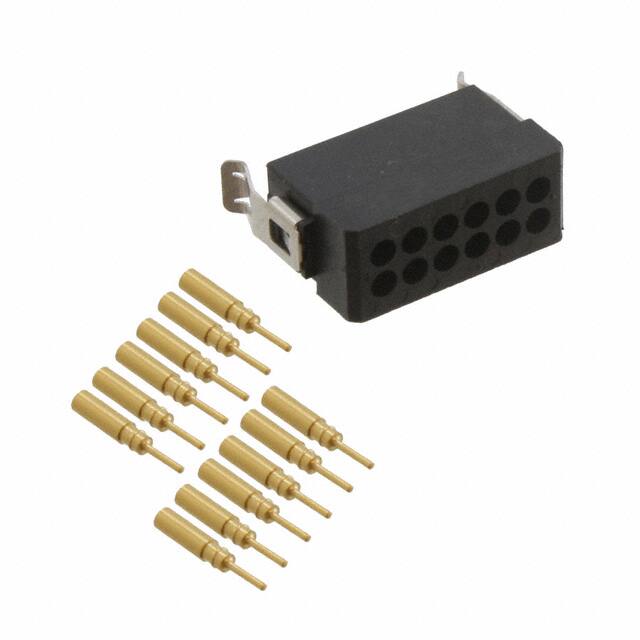

The M80-8121205 is a 12-position rectangular plug connector from Harwin's M80 series. It features a 2.00mm pitch with 2 rows, gold-plated male pin contacts, and a latch holder fastening type for secure mating. This free-hanging (in-line) connector uses crimp termination and accepts 24-28 AWG discrete wires. The black housing provides clear identification. Electrical current rating ranges from 2.2A to 3.3A depending on ambient temperature and contact loading conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $11.38 | $11.38 |
| 10+ | $9.67 | $9.67 |
| 25+ | $9.07 | $9.07 |
| 50+ | $8.63 | $8.63 |
| 100+ | $8.22 | $8.22 |
| 300+ | $7.61 | $7.61 |
| 500+ | $7.34 | $7.34 |
| 1,000+ | $6.99 | $6.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12 positions arranged in 2 rows.
2.00mm (0.079") pitch with 2.00mm row spacing.
Maximum 3.3A at 25°C ambient with one contact loaded; 2.2A at 85°C with all contacts loaded.
Free hanging (in-line) mounting.
24 to 28 AWG discrete wires.
Crimp termination.
