| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
58 pcs
|
58 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Storage Temperature | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

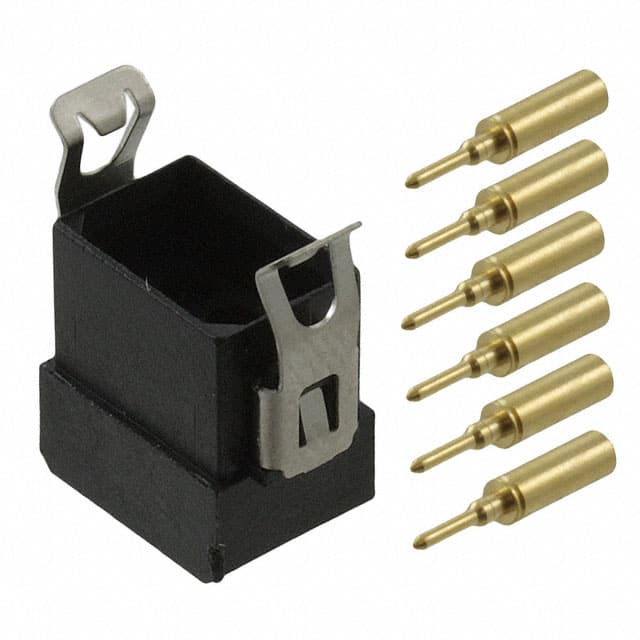

The Harwin M80-8120605 is a Datamate L-Tek series male plug connector kit. It features 6 positions arranged in 2 rows with a 2.00mm pitch, designed for crimp termination of 24 to 28 AWG discrete wires. Contacts are gold plated with 0.25µm thickness for reliable low-resistance connections. The housing is made from high-temperature plastic, resistant up to 295°C during processing, and includes latch holder fastening for secure mating (tool required for separation).
Electrical ratings provide a maximum current of 3.3A with one contact loaded at 25°C, and 3.0A with all contacts loaded at the same ambient temperature. At 85°C, ratings derate to 2.6A (single contact) and 2.2A (all contacts). The connector is intended for free hanging (in-line) mounting, making it suitable for cable-to-cable or cable-to-board interconnections in high-density electronic equipment.
The complete kit includes the plug housing and six straight signal contacts, simplifying procurement and assembly. This connector is part of the Datamate L-Tek family, known for high reliability in demanding applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.60 | $6.60 |
| 10+ | $5.61 | $5.61 |
| 25+ | $5.26 | $5.26 |
| 50+ | $5.01 | $5.01 |
| 100+ | $4.77 | $4.77 |
| 300+ | $4.41 | $4.41 |
| 500+ | $4.26 | $4.26 |
| 1,000+ | $4.05 | $4.05 |
| 2,500+ | $3.80 | $3.80 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This connector has 6 positions arranged in 2 rows.
The pitch is 2.00mm.
Maximum current is 3.0A with all contacts loaded at 25°C, derating to 2.2A at 85°C.
Free hanging (in-line) with latch holder fastening.
This connector accepts 24 to 28 AWG discrete wires.
Contacts have a gold finish with 0.25µm thickness.
The high-temperature plastic housing withstands processing up to 295°C.
