M80-8120405 Harwin M80-8120405 is a 4 position (2+2) male plug crimp connector kit with 2mm pitch and gold contacts. It is designed for free hanging (in-line) mounting and accepts 24-28 AWG discrete wires.
Mfr Part #:

M80-8120405

Available from 1 distributors
Mfr Name: Harwin Inc.
Harwin Inc.
Harwin M80-8120405 is a 4 position (2+2) male plug crimp connector kit with 2mm pitch and gold contacts. It is designed for free hanging (in-line) mounting and accepts 24-28 AWG discrete wires.
✓ Total Stock: 25 pcs
$ Price Range: $2.75 - $4.78

M80-8120405 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
25 pcs
On Request
25 pcs On Request 1 On Request On Request 14+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

M80-8120405 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Termination
Color
Connector Type
Contact Finish
Contact Finish Thickness
Contact Type
Fastening Type
Kit Contents
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Rows
Pitch
Row Spacing
Termination Style
Wire Gauge
Wire Type
View Similar Products (0)

M80-8120405 Description

Short technical summary and product information.

The Harwin M80-8120405 is a Datamate L-Tek series 4 position (2+2) male plug cable connector kit featuring a 2.00mm pitch and high-reliability design. The complete kit includes the male plug housing and four straight signal contacts with gold plating (10.0µin), suitable for crimp termination of 24-28 AWG discrete wires.



Electrical ratings vary by conditions: at 25°C ambient the maximum current per contact is 3.3A (single contact) or 3.0A with all contacts loaded; at 85°C ambient the ratings are 2.6A (single) and 2.2A (all loaded). The housing is made from high-temperature plastic rated to 295°C, making it compatible with lead-free soldering processes.



The connector uses a latch holder fastening type for secure mating and requires a tool to separate mated connectors. The free hanging (in-line) mounting style allows flexible cable-to-cable or cable-to-board connections in dense electronic assemblies.

M80-8120405 Quick Information

Product Type: Rectangular Connector - Plug
Series: L-Tek

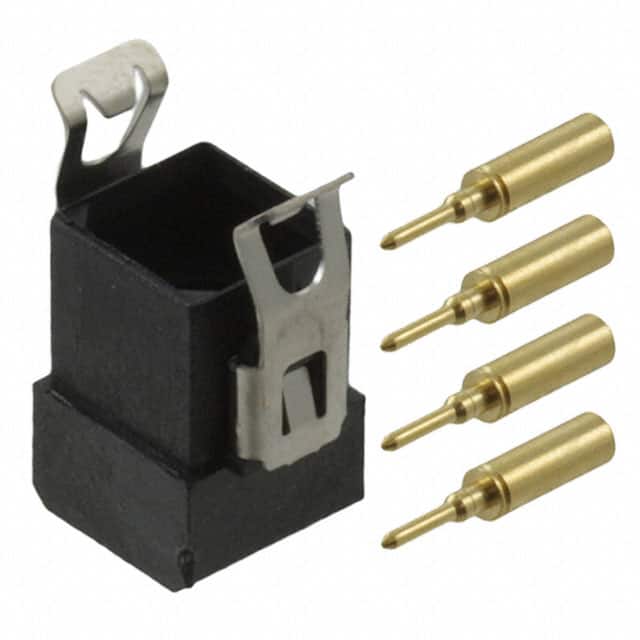

Canonical Name: Harwin Datamate L-Tek M80-8120405 4 Position (2+2) Male Plug Crimp Connector Kit
Subcategory: Crimp Connector Kit

M80-8120405 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

M80-8120405 Estimated Pricing

Qty Low High
1+ $4.78 $4.78
10+ $4.06 $4.06
25+ $3.80 $3.80
50+ $3.62 $3.62
100+ $3.45 $3.45
300+ $3.19 $3.19
500+ $3.08 $3.08
1,000+ $2.93 $2.93
2,500+ $2.75 $2.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

M80-8120405 Features

  • 4 position (2+2) male plug connector.
  • 2.00mm pitch for high density layouts.
  • Gold plated contacts for reliable connections.
  • Accepts 24-28 AWG discrete wires.
  • Latch holder fastening for secure mating.

M80-8120405 Applications

  • Ideal for cable-to-board interconnections.
  • Used in high-reliability electronic systems.
  • Suitable for industrial control modules.
  • Perfect for data communication equipment.

M80-8120405 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this connector have?

4 positions arranged as 2+2 (2 rows of 2).

What is the pitch of this connector?

2.00mm (0.079") pitch and row spacing.

What is the current rating of the M80-8120405?

Max 3.3A per contact (single contact at 25°C), 3.0A with all contacts loaded at 25°C. At 85°C: 2.6A single, 2.2A all loaded.

What mounting type does this connector use?

Free hanging (in-line) mounting.

What wire gauge is compatible with this connector?

24-28 AWG discrete wires.

What is the contact finish?

Gold plating with 10.0µin (0.25µm) thickness.

What fastening type does this connector have?

Latch holder for secure locking.
