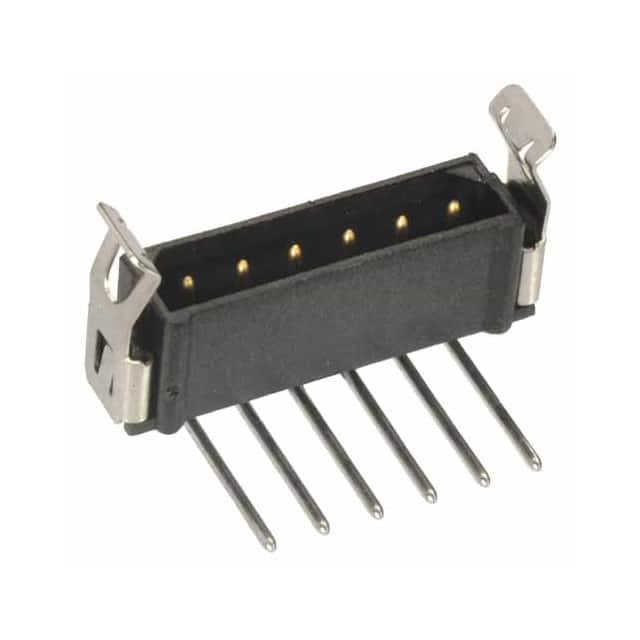

The M80-7920642 is a 6-position, single row, right angle header from Harwin's Datamate M80 series. It features a 2.00mm pitch and a shrouded 4-wall design for secure mating. The contacts are male pins made of phosphor bronze with tin plating and a thickness of 29.5µin. The insulation is black polyphenylene sulfide (PPS) with glass filling, rated UL94 V-0, and the housing height measures 3.96mm.
Electrically, the connector is rated for a maximum voltage of 120V and a current of 2.2A per contact when all contacts are simultaneously energized at 85°C ambient. It offers a latch lock fastening type and includes strain relief clips for cable applications. The operating temperature range is -55°C to 125°C, suitable for harsh environments.
Mechanically, this header is designed for through hole, right angle mounting with solder termination. It supports board-to-board or cable-to-board connection styles. With a contact length of 4.50mm and fully loaded positions, it provides reliable interconnection in compact electronic assemblies.
The M80-7920642 has 6 positions in a single row, all loaded.
The pitch is 2.00mm (0.079 inches).
The maximum current rating is 2.2A per contact when all contacts are simultaneously energized at 85°C ambient.
The maximum voltage rating is 120V.
It is through hole, right angle mounting with solder termination.
The operating temperature range is -55°C to 125°C.
The insulation is black polyphenylene sulfide (PPS) glass filled with UL94 V-0 flammability rating.
