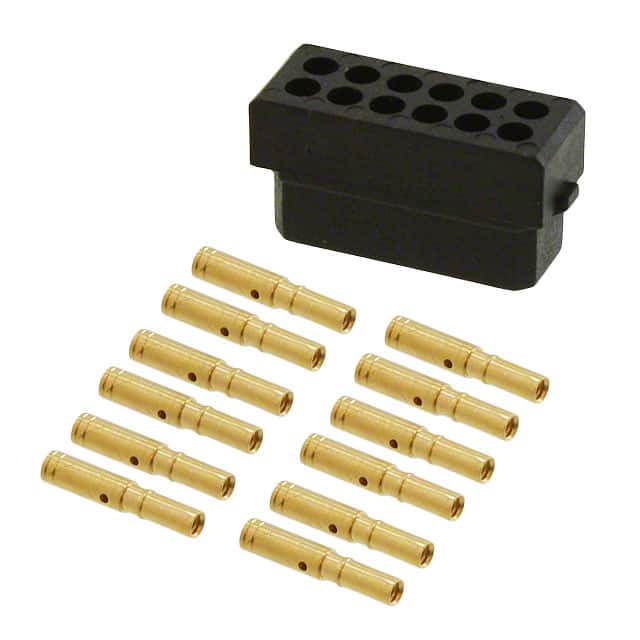

The Harwin M80-7881205 is a 12 position female receptacle connector from the Datamate L-Tek series. It features a 2.00mm pitch with 2 rows and uses female socket contacts with a gold finish of 0.30µm thickness. The connector is designed for free hanging (in-line) mounting and uses a locking ramp fastening type for secure mating.
This connector accepts 28-32 AWG discrete wire and uses a crimp termination style. The current rating is 3.3A maximum for a single contact at 25°C ambient, and 3.0A when all contacts are used at 25°C ambient. At 85°C ambient, the ratings are 2.6A for a single contact and 2.2A for all contacts.
The connector housing is black and is part of the M80 series of 2.00mm pitch rectangular connectors from Harwin. It is designed for high packing density electronic equipment and is polarized to prevent mis-matching.
| Qty | Low | High |
|---|---|---|
| 1+ | $11.51 | $11.51 |
| 10+ | $9.79 | $9.79 |
| 25+ | $9.17 | $9.17 |
| 50+ | $8.73 | $8.73 |
| 100+ | $8.32 | $8.32 |
| 250+ | $7.80 | $7.80 |
| 500+ | $7.43 | $7.43 |
| 1,000+ | $7.07 | $7.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The M80-7881205 has 12 positions arranged in 2 rows.
The pitch is 2.00mm with a row spacing of 2.00mm.
The current rating is 3.3A maximum for a single contact at 25°C ambient, and 3.0A when all contacts are used at 25°C ambient. At 85°C ambient, the ratings are 2.6A for a single contact and 2.2A for all contacts.
The connector accepts 28-32 AWG wire.
The mounting type is free hanging (in-line).
The connector uses female socket contacts with a gold finish of 0.30µm thickness.
The termination style is crimp.
