Mfr Part #:

M80-7056305

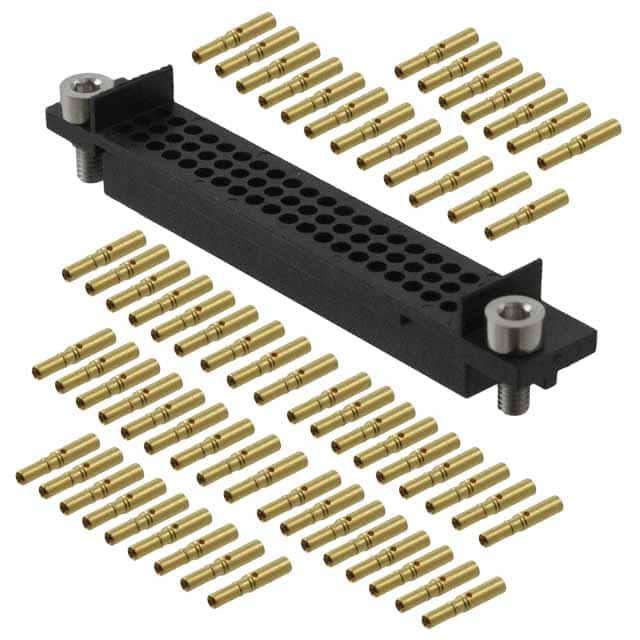

Harwin M80-7056305 is a 63-position female receptacle cable connector with 2.00mm pitch, 3 rows, crimp termination for 24-28 AWG wires. It features gold contacts and hex socket jackscrews for secure mating.

✓ Total Stock: 70 pcs

$ Price Range: $28.34 - $39.44

M80-7056305 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Partservice ✓ Non-Authorised Inventory information	70 pcs On Request	70 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

M80-7056305 Description

Short technical summary and product information.

The Harwin M80-7056305 is a 63-position female receptacle connector from the Datamate 3-Row (Legacy Series). It is a complete kit that includes the straight cable housing and 63 straight signal contacts (21 per row). The connector features a 2.00mm pitch and three rows, making it suitable for high-density board-to-wire interconnections. Termination is via crimp, accepting 24-28 AWG discrete wires. The receptacle is free hanging (in-line) and is fitted with floating hex socket jackscrews that accept a 2mm hex key for secure mating. Electrical ratings include a maximum current of 3.3A per contact (single contact, 25°C ambient) and 3.0A per contact when all contacts are loaded at 25°C. The working voltage is 120V DC or AC peak at sea level. Contact resistance is 20mΩ maximum initially, and insulation resistance is 1000MΩ minimum. The contacts are gold plated with a thickness of 11.8µin (0.30µm). This connector is designed for use in electronic equipment requiring high packing density and reliable signal connections.

M80-7056305 Quick Information

Product Type: Female Receptacle Connector

Series: 3-Row (Legacy Series)

Canonical Name: Harwin M80-7056305 Datamate 3-Row Female Receptacle Cable Connector Kit, 63 Positions, 2.00mm Pitch, Crimp Termination

Subcategory: Free Hanging, Panel Mount

M80-7056305 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

M80-7056305 Estimated Pricing

Qty	Low	High
1+	$39.44	$39.44
12+	$33.09	$33.09
108+	$28.34	$28.34

Estimated market price range - modelled values for guidance only, not live distributor offers.

M80-7056305 Features

63-position female receptacle with 3 rows.
2.00mm pitch and crimp termination for 24-28 AWG.
Gold plated contacts for reliable connectivity.
Floating hex socket jackscrews for secure mating.
Rated for 3.3A per contact at 25°C.

M80-7056305 Applications

Ideal for high-density board-to-wire cable assemblies.
Used in industrial controls and automation systems.
Suitable for data communication and signal interconnections.
Common in aerospace and defense electronics.

M80-7056305 FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the M80-7056305 have?

63 positions, arranged in 3 rows of 21 contacts each.

What is the pitch of the M80-7056305?

2.00mm (0.079 inches).

What is the current rating of the M80-7056305?

Multiple ratings: 3.3A per contact (single, 25°C), 2.6A (single, 85°C), 3.0A all contacts (25°C), 2.2A all contacts (85°C).

What is the voltage rating of the M80-7056305?

120V DC or AC peak maximum at sea level.

What type of mounting does the M80-7056305 use?

Free hanging (in-line) cable mount.

What is the contact finish on the M80-7056305?

Gold, with a thickness of 11.8µin (0.30µm).

What wire gauge is compatible with the M80-7056305?

24-28 AWG discrete wires.

Category	Free Hanging, Panel Mount
Manufacturer Name	Harwin Inc.
Cable Termination	Crimp
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	11.8µin (0.30µm)
Contact Type	Female Socket
Features	Jackscrews
Lead Spacing	2.0 mm
Lead Style	Gold
Mounting Type	Free Hanging (In-Line)
Number of Positions	63
Number of Rows	3
Pitch	2.00mm (0.079")
Row Spacing	0.079" (2.00mm)
Termination Style	Crimp
Wire Gauge	24-28 AWG
Wire Type	Discrete
Working Voltage	120V DC or AC peak
