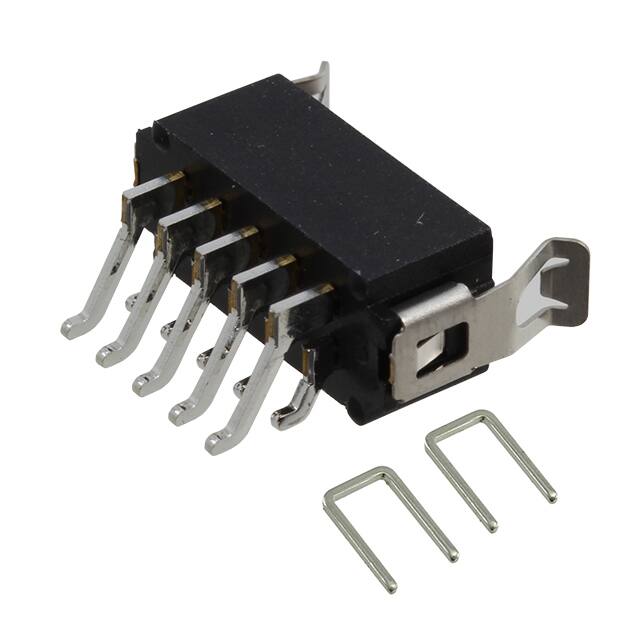

The Harwin M80-6661042 is a Datamate L-Tek series 10 position, 2 row, 2mm pitch surface mount right angle shrouded header. It features male pin contacts made of brass with a tin finish (0.75µm thickness) and a circular contact shape. The connector is fully shrouded with 4 walls and includes strain relief clips. The insulation is black glass-filled Polyphenylene Sulfide (PPS) with a UL94 V-0 flammability rating and an insulation height of 5.97mm.
Electrically, the header is rated for a maximum current of 3.3A per contact at 25°C (2.6A at 85°C) and 3.0A with all contacts loaded at 25°C (2.2A at 85°C). The voltage rating is 800V. The operating temperature range is -55°C to 125°C. The connector uses latch lock fastening and is designed for board-to-board or cable-to-board applications.
The M80-6661042 is terminated via solder and is surface mount with a right angle orientation. It is suitable for high-density packaging in electronic equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.43 | $8.43 |
| 18+ | $6.87 | $6.87 |
| 108+ | $6.05 | $6.05 |
| 504+ | $5.43 | $5.43 |
| 1,008+ | $5.17 | $5.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.00mm.
It has 10 positions arranged in 2 rows.
The maximum current rating is 3.3A per contact at 25°C ambient (one contact loaded) and 2.2A with all contacts loaded at 85°C ambient.
The voltage rating is 800V.
It is surface mount with a right angle orientation.
