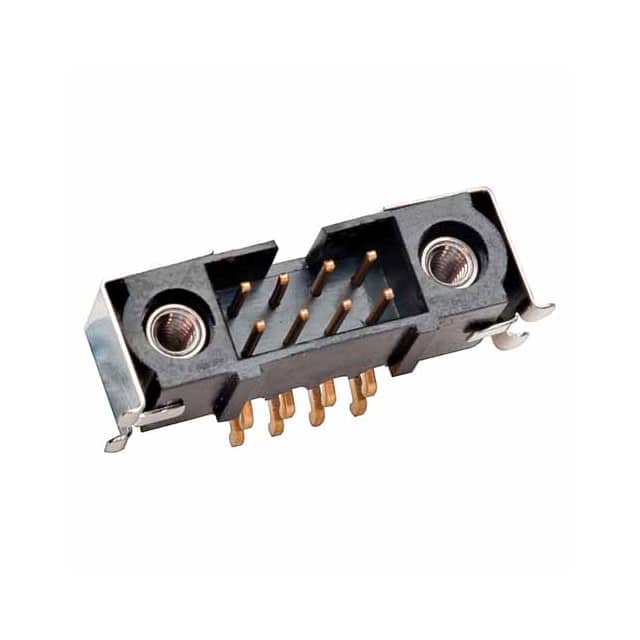

The Harwin M80-5S21022MQ is a 10-position (5+5) male pin header from the Datamate J-Tek series, designed for high-reliability board-to-board or cable-to-board interconnections. It features a 2.00mm pitch, right-angle surface mount termination, and a shrouded 4-wall housing that provides robust polarization and protection.
This connector is rated for a maximum current of 2.2A when all contacts are loaded at 85°C ambient, with a voltage rating of 800VAC/DC. The contacts are made of brass with a tin-lead finish, and the insulator is black glass-filled PPS with a UL94 V-0 flammability rating. The operating temperature range is -55°C to 125°C.
The M80-5S21022MQ includes threaded jackscrews for secure mating, along with SMT hold-down tabs for enhanced board retention. It is suitable for applications requiring a durable, polarized, and high-density interconnect solution.
| Qty | Low | High |
|---|---|---|
| 252+ | $47.46 | $47.46 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.00mm (0.079 inches).
It has 10 positions (5+5) in 2 rows, all loaded.
The maximum current rating is 2.2A when all contacts are loaded at 85°C ambient. For a single contact at 25°C, the rating is 3.3A.
The voltage rating is 800VAC/DC.
It uses surface mount, right-angle termination.
The operating temperature range is -55°C to 125°C.
The contact finish is tin-lead with a thickness of 29.5 microinches (0.75 micrometers).
