Mfr Part #:

M80-5S20605MQ

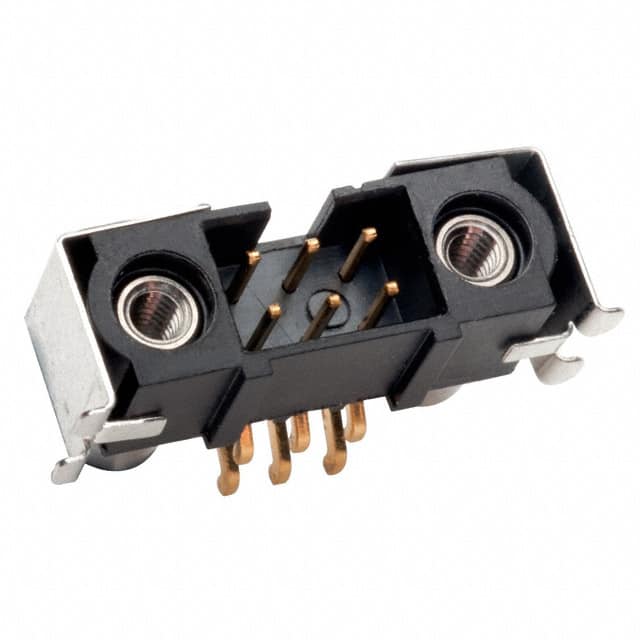

Harwin Datamate J-Tek M80-5S20605MQ is a 6 position (3+3) male pin header with 2.00mm pitch, surface mount right angle termination, gold plated contacts, and threaded jackscrews.

✓ Total Stock: 13 pcs

$ Price Range: $60.77

M80-5S20605MQ Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Hybrid Electronics ✓ Non-Authorised Inventory information	13 pcs On Request	13 pcs	On Request	1	On Request	On Request	NDC	On Request	On Request

M80-5S20605MQ Description

Short technical summary and product information.

The Harwin M80-5S20605MQ is a 6 position (3+3) male pin header from the Datamate J-Tek series. It features a 2.00mm pitch with 2 rows, shrouded 4-wall design, and surface mount right angle termination for board-to-board or cable-to-board applications.

This connector is rated for 2.2A per contact when all contacts are loaded at 85°C ambient, and up to 3.3A for a single contact at 25°C. The voltage rating is 800V. Contacts are made of brass with a gold finish (29.5µin) and circular contact shape.

The housing is black glass-filled PPS (UL94 V-0) with an insulation height of 6.25mm. It includes keying slot, mating flange, mating hardware (threaded jackscrews), and solder retention features. Operating temperature range is -55°C to 125°C.

M80-5S20605MQ Quick Information

Product Type: Header, Male Pins

Series: J-Tek

Canonical Name: Harwin Datamate J-Tek M80-5S20605MQ 6 Position (3+3) Male Pin Header, 2.00mm Pitch, Surface Mount Right Angle, Threaded Jackscrews

Subcategory: Shrouded Header, Male Pins

M80-5S20605MQ Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

M80-5S20605MQ Estimated Pricing

Qty	Low	High
260+	$60.77	$60.77

Estimated market price range - modelled values for guidance only, not live distributor offers.

M80-5S20605MQ Features

6 position (3+3) male pin header.
2.00mm pitch with 2 rows.
Surface mount right angle termination.
Gold plated brass contacts (29.5µin).
Threaded jackscrews for secure mating.

M80-5S20605MQ Applications

Board-to-board interconnections in compact electronics.
Cable-to-board connections requiring secure locking.
High-reliability industrial and aerospace systems.
Applications needing 2.00mm pitch density.

M80-5S20605MQ FAQs

7 frequently asked questions generated from this part’s specifications.

What is the pitch of the M80-5S20605MQ connector?

The pitch is 2.00mm (0.079 inches) with a row spacing of 2.00mm.

How many positions does the M80-5S20605MQ have?

It has 6 positions arranged in 2 rows (3+3), all positions loaded.

What is the current rating of the M80-5S20605MQ?

2.2A per contact when all contacts are loaded at 85°C ambient, or 3.3A for a single contact at 25°C ambient.

What is the voltage rating of the M80-5S20605MQ?

The voltage rating is 800V.

What mounting type does the M80-5S20605MQ use?

Surface mount, right angle with solder termination.

What is the operating temperature range of the M80-5S20605MQ?

-55°C to 125°C.

What is the contact finish on the M80-5S20605MQ?

Gold finish with a thickness of 29.5µin (0.75µm).

Category	Headers, Male Pins
Manufacturer Name	Harwin Inc.
Connector Type	Header
Contact Finish	Gold
Contact Finish Thickness	29.5µin (0.75µm)
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2.2A per Contact
Fastening Type	Threaded
Features	Keying Slot, Mating Flange, Mating Hardware, Solder Retention
Insulation Color	Black
Insulation Height	6.25mm (0.246")
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Lead Spacing	2.0 mm
Lead Style	Solder
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Pitch	2.00mm (0.079")
Row Spacing	2.00mm (0.079")
Shrouding	Shrouded - 4 Wall
Style	Board to Board or Cable
Termination	Solder
Voltage Rating	800V
