Mfr Part #:

M80-5431622

Name: M80-5431622
Brand: Harwin Inc.
SKU: M80-5431622

Mfr Name: Harwin Inc.

Description:

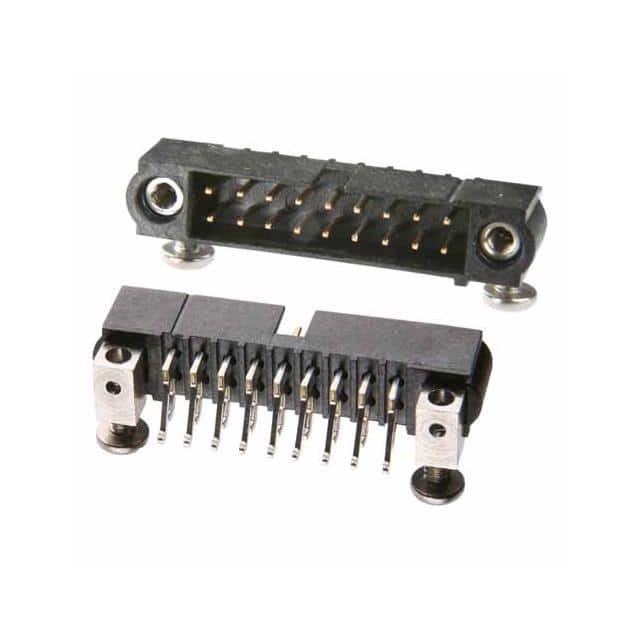

CONN HDR 2MM SMT 16POS W/JS R/A

Stock on Request

M80-5431622 Description

Short technical summary and product information.

CONN HDR 2MM SMT 16POS W/JS R/A

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Headers, Male Pins
Manufacturer Name	Harwin Inc.
Connector Type	Header
Contact Finish	Tin-Lead
Contact Finish Thickness	29.5碌in (0.75碌m)
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2.2A
Fastening Type	Threaded
Features	Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Insulation Color	Black
Insulation Height	0.218" (5.55mm)
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Pitch	0.079" (2.00mm)
Row Spacing	0.079" (2.00mm)
Shrouding	Shrouded - 4 Wall
Style	Board to Board or Cable
Termination	Solder
Voltage Rating	800VAC/DC
