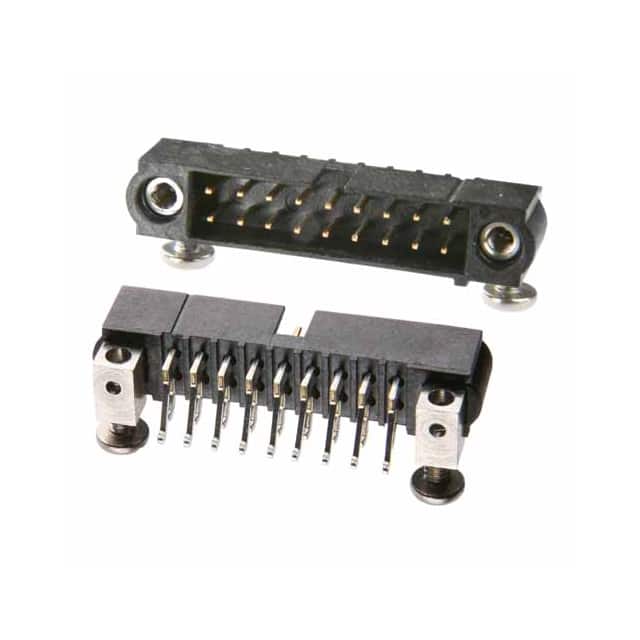

M80-5431405 The M80-5431405 is a 14-position male pin header from Harwin's Datamate J-Tek series. It features a 2.00mm pitch, right-angle surface mount termination, and gold-plated contacts.
Mfr Part #:

M80-5431405

Available from 1 distributors
Mfr Name: Harwin Inc.
Harwin Inc.
The M80-5431405 is a 14-position male pin header from Harwin's Datamate J-Tek series. It features a 2.00mm pitch, right-angle surface mount termination, and gold-plated contacts.
✓ Total Stock: 154 pcs

M80-5431405 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
154 pcs
On Request
154 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

M80-5431405 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Storage Temperature
Style
Termination
Voltage Rating
View Similar Products (0)

M80-5431405 Description

Short technical summary and product information.

The M80-5431405 is a high-reliability male pin header from Harwin's Datamate J-Tek series. It features 14 contacts arranged in a 2-row configuration with a 2.00mm pitch. This connector is designed for board-to-cable/wire applications and offers a shrouded 4-wall design for protection. The right-angle surface mount termination allows for horizontal mounting on the PCB.



The connector includes threaded jackscrews and board mount threads for secure mating and retention. It is supplied with 5mm slotted bolts (M80-2270000B) for board mount retention. The contacts are made of copper alloy with a gold finish (0.75µm thickness) for reliable conductivity and corrosion resistance. The insulation is black glass-filled PPS with a UL94 V-0 flammability rating.



Electrical ratings include a voltage rating of 800VAC/DC and current ratings of up to 2.2A per contact (all contacts at 85°C ambient) or up to 3.3A for a single contact at 25°C. The operating temperature range is -55°C to 125°C. The connector features keying slots and mating flanges to ensure proper alignment.

M80-5431405 Quick Information

Product Type: Male Pin Header
Series: M80
Canonical Name: Harwin M80-5431405 - 14 Position (7+7) Male Header, Right-Angle SMT, 2.00mm Pitch
Subcategory: Shrouded Header

M80-5431405 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

M80-5431405 Features

  • 14-position (7+7) male pin header.
  • 2.00mm pitch, right-angle SMT mounting.
  • Gold-plated copper alloy contacts.
  • Threaded jackscrews for secure mating.
  • Shrouded 4-wall design for protection.

M80-5431405 Applications

  • Board-to-cable connections in industrial equipment.
  • High-reliability data and power interconnects.
  • Applications requiring vibration-resistant mating.
  • Compact designs with right-angle PCB mounting.

M80-5431405 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the M80-5431405 have?

14 positions (7+7).

What is the pitch (contact spacing) of this connector?

2.00mm (0.079").

What is the current rating of the M80-5431405?

Up to 2.2A per contact when all contacts are loaded at 85°C ambient; up to 3.3A per contact for a single contact at 25°C ambient.

What is the voltage rating of this connector?

800VAC/DC.

What mounting type does the M80-5431405 use?

Right-angle surface mount (SMT).

What is the operating temperature range?

-55°C to 125°C.

What is the contact material and finish?

Copper alloy contacts with 0.75µm gold plating.
