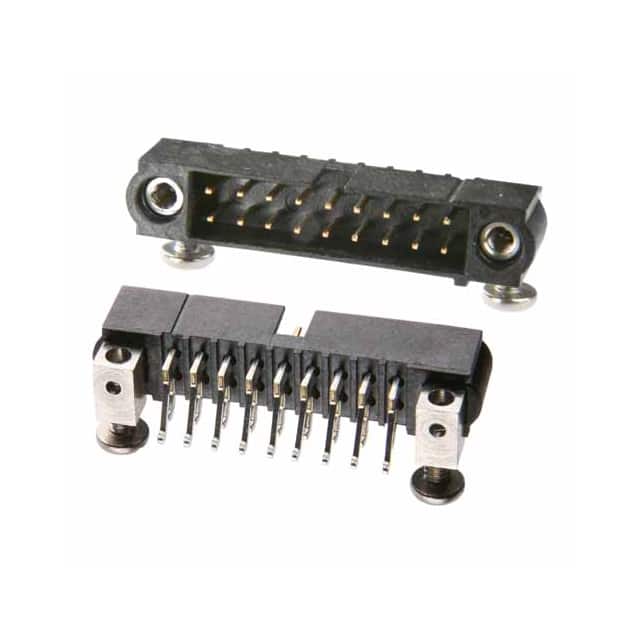

The Harwin M80-5421242 is a 12 position (6+6) male pin header from the high-reliability Datamate J-Tek series. This connector features a 2.00mm pitch, double row configuration, and a right angle surface mount termination for board-to-board or cable-to-board applications. The header is fully shrouded with a 4-wall design and includes internally threaded jackscrews and board mount threads for secure mating.
The connector is rated for up to 3.3A per contact at 25°C and 800V, with an operating temperature range of -55°C to 125°C. The insulation is made from glass filled Polyphenylene Sulfide (PPS) with a UL94 V-0 flammability rating. Contacts are made of copper alloy with a tin finish and a thickness of 29.5µin. The header includes keying slots, mating flanges, and mounting flanges for reliable alignment and retention.
| Qty | Low | High |
|---|---|---|
| 1+ | $17.82 | $17.82 |
| 12+ | $14.95 | $14.95 |
| 108+ | $12.80 | $12.80 |
| 504+ | $11.48 | $11.48 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The M80-5421242 has 12 positions arranged as 6+6 in a double row configuration.
The pitch is 2.00mm.
The current rating is 3.3A per contact at 25°C ambient and 2.2A with all contacts at 85°C ambient.
The voltage rating is 800V.
The mounting type is surface mount, right angle.
The operating temperature range is -55°C to 125°C.
The contact finish is tin with a thickness of 29.5µin (0.75µm). Note: manufacturer page and datasheet indicate Gold+Tin or gold plated, creating a conflict.
