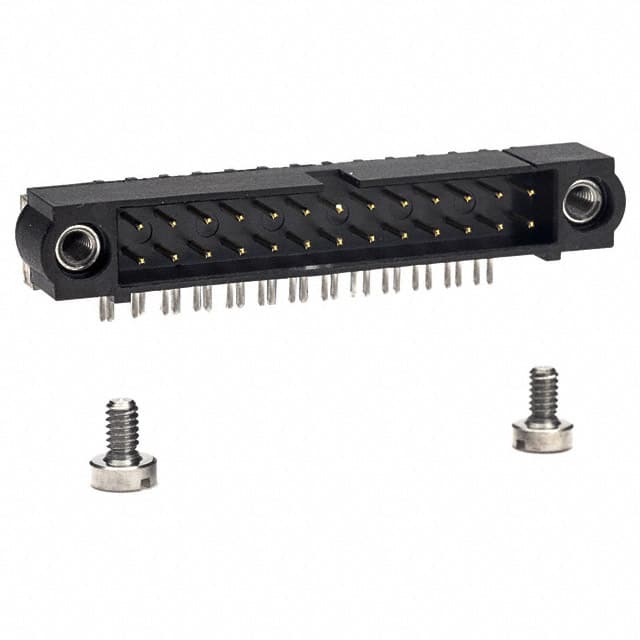

The M80-5402642 is a 26-position (13+13) right-angle male header from Harwin's Datamate J-Tek series, designed for high-reliability board-to-board or cable connections. It features a 2.00mm pitch, through-hole mounting with 3mm PCB terminations, and a fully shrouded 4-wall housing.
Electrical ratings include a voltage rating of 800V and current ratings up to 3.3A per contact at 25°C (single contact loaded) or 3.0A with all contacts loaded. Derating applies at higher ambient temperatures. The operating temperature range is -55°C to 125°C.
The connector is constructed with a black glass-filled PPS insulator, phosphor bronze contacts with gold and tin plating, and includes threaded jackscrews and board mount hardware for secure mating. It is UL94 V-0 rated for flammability.
Typical applications include industrial, aerospace, and other environments requiring robust, high-density interconnects. The Datamate J-Tek series is known for its reliability and versatility in demanding conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $25.63 | $25.63 |
| 14+ | $21.27 | $21.27 |
| 105+ | $18.46 | $18.46 |
| 504+ | $16.52 | $16.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
26 positions (13+13 dual row).
2.00mm.
Up to 3.3A per contact at 25°C with one contact loaded; 3.0A with all contacts loaded at 25°C; derated at higher temperatures.
800V.
Through hole, right angle.
-55°C to 125°C.
Gold and tin plating.
