| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
| On Request | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

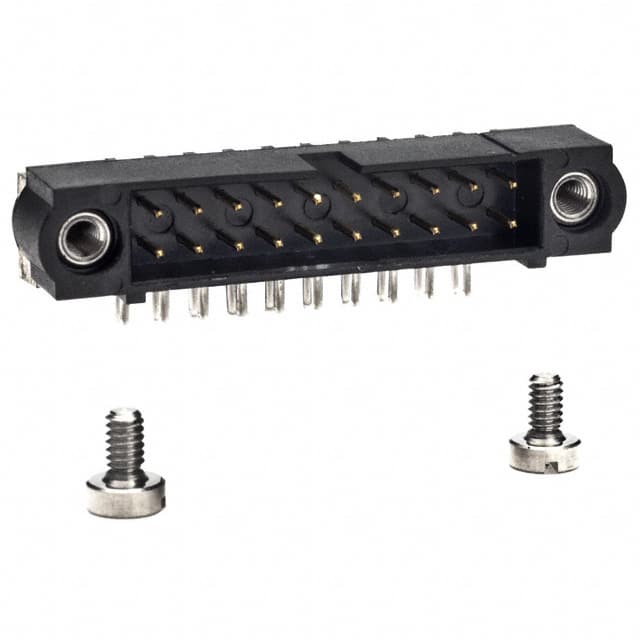

The Harwin M80-5402042 is a 20-contact male header from the Datamate J-Tek series, designed for high-reliability board-to-board or cable-to-board interconnections. It has a 2.00mm pitch and a double-row right-angle (horizontal) through hole configuration. The connector is fully shrouded with four walls and includes internally threaded jackscrews and board mount threads for secure mating.
Electrical ratings include a maximum current of 3.3A per contact at 25°C ambient (3.0A when all contacts are powered) and a voltage rating of 800V. The contacts are made of phosphor bronze with a gold+tin finish (29.5µin gold over tin) and are circular in shape. The insulation is black polyphenylene sulfide (PPS) glass-filled material rated UL94 V-0.
The connector operates over a temperature range of -55°C to +125°C. It features keying slots, a mating flange, and mounting flanges for panel mounting. The part is RoHS3 compliant (unverified) and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $24.55 | $24.55 |
| 16+ | $20.18 | $20.18 |
| 104+ | $17.69 | $17.69 |
| 504+ | $15.82 | $15.82 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.00mm (0.079 inch).
3.3A per contact at 25°C ambient (one contact powered). When all contacts are powered at 25°C, the rating is 3.0A.
800V.
Through hole, right angle (horizontal) mount with solder termination.
Yes, it features a shrouded 4-wall design with threaded jackscrews and board mount hardware.
-55°C to +125°C.
The insulator is black polyphenylene sulfide (PPS) glass-filled material with a UL94 V-0 flammability rating.
