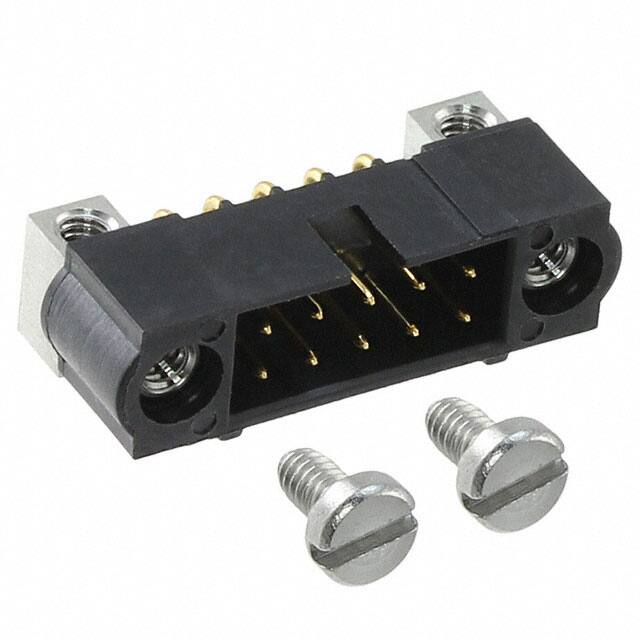

M80-5401005 10-position, 2.00mm pitch right angle through hole shrouded header from Harwin's Datamate M80 series. Features gold-plated phosphor bronze contacts, threaded fastening, and a UL94 V-0 rated PPS insulator.
Mfr Part #:

M80-5401005

Available from 1 distributors
Mfr Name: Harwin Inc.
Harwin Inc.
10-position, 2.00mm pitch right angle through hole shrouded header from Harwin's Datamate M80 series. Features gold-plated phosphor bronze contacts, threaded fastening, and a UL94 V-0 rated PPS insulator.
✓ Total Stock: 2 pcs
$ Price Range: $17.57 - $27.27

M80-5401005 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

M80-5401005 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Termination
Voltage Rating
View Similar Products (0)

M80-5401005 Description

Short technical summary and product information.

The M80-5401005 is a 10-position, 2.00mm pitch right angle through hole shrouded header from Harwin's Datamate M80 series. It features a 4-wall shrouded design with threaded fastening for secure mating. The contacts are male pins made of phosphor bronze with a gold finish (29.5µin thickness). The insulator is black glass-filled PPS with a UL94 V-0 flammability rating. This connector is rated for up to 3.0A per contact at 25°C ambient (2.2A at 85°C) and 800V. Operating temperature range is -55°C to 125°C. The right angle orientation allows for board-to-board or cable connections in space-constrained applications. Key features include keying slot, mating flange, mounting flange, and mounting hardware. The connector is RoHS3 compliant and REACH unaffected (unverified).

M80-5401005 Quick Information

Product Type: Header, Male Pins
Series: M80
Canonical Name: 10 Position 2.00mm Pitch Right Angle Through Hole Shrouded Header, Male Pins
Subcategory: Shrouded Right Angle Header

M80-5401005 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

M80-5401005 Estimated Pricing

Qty Low High
1+ $27.27 $27.27
13+ $22.75 $22.75
104+ $19.65 $19.65
507+ $17.57 $17.57

Estimated market price range - modelled values for guidance only, not live distributor offers.

M80-5401005 Features

  • 10-position 2.00mm pitch right angle header.
  • Gold-plated phosphor bronze contacts.
  • Threaded fastening for secure mating.
  • UL94 V-0 rated PPS insulator.
  • Rated for 3.0A per contact at 25°C.

M80-5401005 Applications

  • Board-to-board connections in tight spaces.
  • Cable-to-board interconnects with locking.
  • High-density electronic equipment packaging.
  • Industrial control and automation systems.

M80-5401005 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

10 positions in 2 rows.

What is the pitch?

2.00mm (0.079 inches).

What is the current rating?

3.0A per contact at 25°C ambient (all contacts), derated to 2.2A at 85°C.

What is the voltage rating?

800V.

What is the mounting type?

Through hole, right angle.

What is the operating temperature range?

-55°C to 125°C.

What is the contact finish?

Gold, 29.5µin (0.75µm) thickness.
