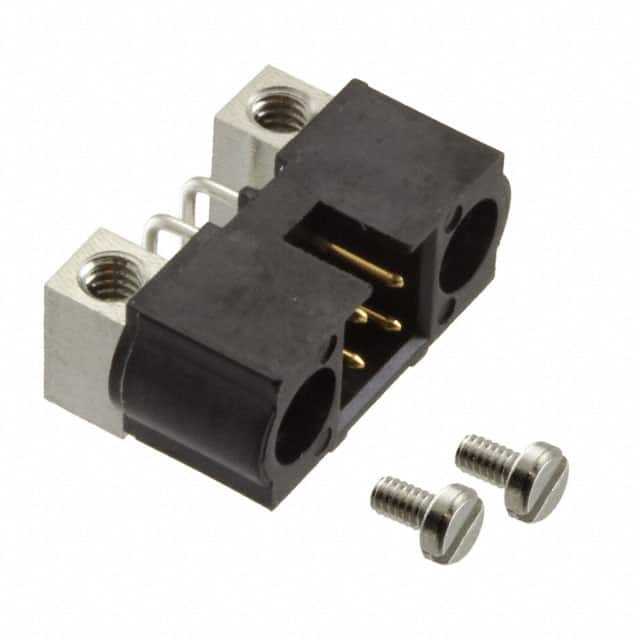

The Harwin M80-5400442 is a 4-position (2+2) male pin header from the Datamate J-Tek series, designed for high-reliability board-to-board or cable-to-board interconnections. It features a 2.00mm pitch, double-row configuration, and a right-angle through hole mounting style with 3.00mm PCB terminations.
The connector is fully shrouded with a 4-wall design and includes internally threaded jackscrews and board mount threads for secure mating. The insulation is molded from black glass-filled Polyphenylene Sulfide (PPS) with a UL94 V-0 flammability rating. Contacts are made of phosphor bronze with a gold+tin finish.
Electrically, the connector is rated for up to 3.3A per contact at 25°C (2.6A at 85°C) and 800V. It operates over a temperature range of -55°C to 125°C. The design includes keying slots, mating flanges, and mounting flanges for reliable alignment and retention.
| Qty | Low | High |
|---|---|---|
| 1+ | $22.12 | $22.12 |
| 18+ | $18.03 | $18.03 |
| 108+ | $15.89 | $15.89 |
| 504+ | $14.26 | $14.26 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The M80-5400442 has 4 positions (2+2) in 2 rows.
The pitch is 2.00mm (0.079 inches).
The current rating is 3.3A per contact at 25°C (one contact) and 3.0A when all contacts are used at 25°C. At 85°C, the ratings are 2.6A per contact and 2.2A for all contacts.
The voltage rating is 800V.
The mounting type is through hole, right angle.
The operating temperature range is -55°C to 125°C.
The contact finish is Gold+Tin.
