| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
28 pcs
|
28 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

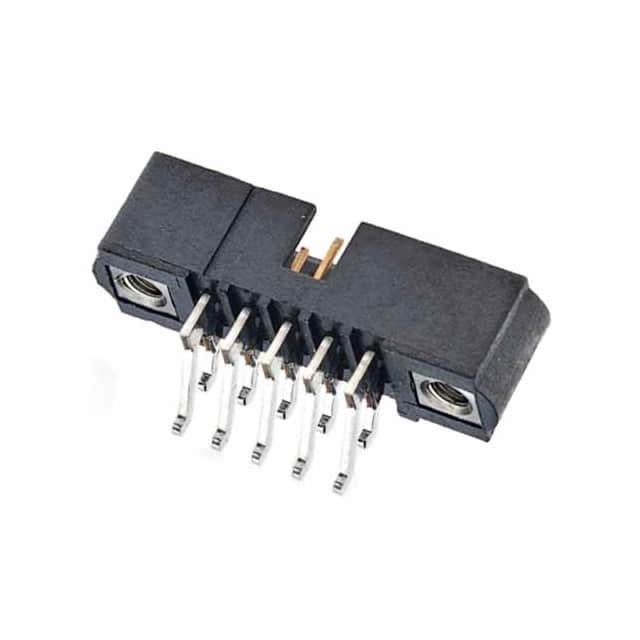

The Harwin M80-5322605 is a 26-position male plug connector from the Datamate J-Tek series, designed for high-reliability board-to-board and cable-to-board interconnections. It features a double-row right-angle surface mount configuration with a 2.00mm pitch, shrouded 4-wall header, and gold-plated brass contacts with a thickness of 0.75µm. The connector is fitted with threaded jackscrews for secure mating and includes a keying slot and mating flange for polarization.
Electrical ratings include a maximum current of 2.2A when all contacts are energized at 85°C ambient (3.0A at 25°C), and a voltage rating of 800VAC/DC. The operating temperature range spans -55°C to 125°C, making it suitable for demanding environments. The insulation is made from glass-filled polyphenylene sulfide (PPS) with a UL94 V-0 flammability rating.
Packaging is in tubes; the standard package quantity is not verified. This connector is intended for use in compact electronic equipment where high packing density and reliable connections are required.
| Qty | Low | High |
|---|---|---|
| 105+ | $11.60 | $11.60 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The M80-5322605 has 26 positions (13+13, two rows).
The pitch is 2.00mm (0.079 inches).
Maximum current ratings: 2.2A all contacts at 85°C, 3.0A all contacts at 25°C, 2.6A single contact at 85°C, and 3.3A single contact at 25°C.
The voltage rating is 800VAC/DC.
It is a surface mount, right angle connector.
The operating temperature range is -55°C to 125°C.
Contacts are brass with a gold finish of 0.75µm thickness.
