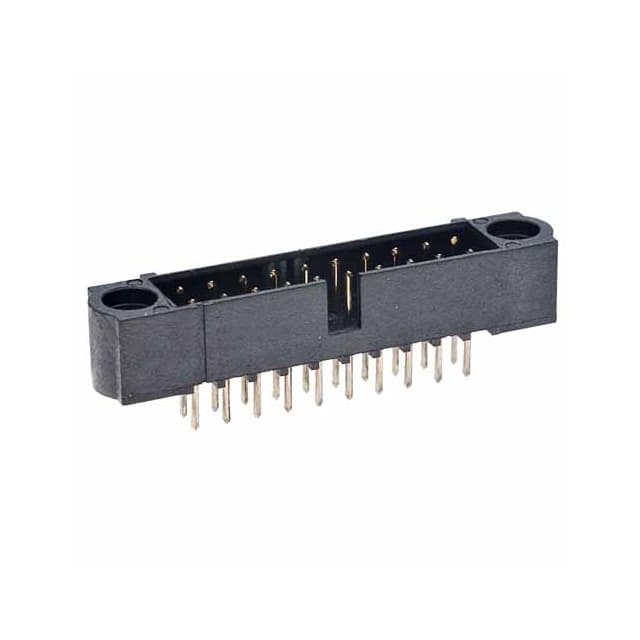

The Harwin M80-5201442 is a 14-position (7+7) male pin header from the Datamate J-Tek series, designed for high-reliability board-to-board and cable-to-board connections. It features a 2.00mm pitch, dual-row configuration, and through hole mounting with solder termination. The connector has a shrouded 4-wall design with keying slot and mating flange for secure alignment.
The contacts are made of phosphor bronze with gold plating on the mating area and tin on the termination ends, providing reliable electrical performance. Electrical ratings include 3.3A maximum per contact at 25°C ambient (2.6A at 85°C) and a voltage rating of 120V. The insulation is black glass-filled PPS with a UL94 V-0 flammability rating. Operating temperature ranges from -55°C to 125°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.12 | $8.12 |
| 11+ | $6.85 | $6.85 |
| 110+ | $5.82 | $5.82 |
| 506+ | $5.23 | $5.23 |
| 1,001+ | $4.98 | $4.98 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
14 positions (7+7 dual row).
2.00mm (0.079 inches).
3.3A maximum per contact at 25°C ambient (single contact). Derates to 2.2A when all contacts are energized at 85°C.
120V.
Through hole (vertical).
Gold on mating areas, Tin on termination areas (29.5µin gold thickness).
-55°C to +125°C.
