M80-5131605 Harwin M80-5131605 is a 16-position (8+8) male plug from the Datamate J-Tek series, featuring 2.00mm pitch, surface mount termination, gold-plated phosphor bronze contacts, and threaded jackscrews for secure mating.
Mfr Part #:

M80-5131605

Available from 1 distributors
Mfr Name: Harwin Inc.
Harwin Inc.
Harwin M80-5131605 is a 16-position (8+8) male plug from the Datamate J-Tek series, featuring 2.00mm pitch, surface mount termination, gold-plated phosphor bronze contacts, and threaded jackscrews for secure mating.
✓ Total Stock: 110 pcs
$ Price Range: $16.20

M80-5131605 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
110 pcs
On Request
110 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

M80-5131605 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Termination
Termination Style
Voltage Rating
View Similar Products (0)

M80-5131605 Description

Short technical summary and product information.

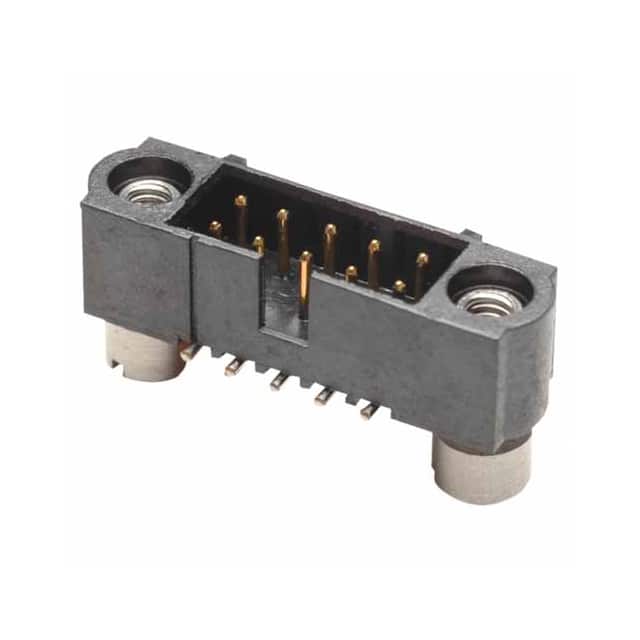

The Harwin M80-5131605 is a 16-position (8+8) male plug header from the Datamate J-Tek series, designed for high-reliability board-to-board and cable-to-board applications. It features a 2.00mm pitch and surface mount termination with solder contacts.



The connector is fully shrouded with a 4-wall design and includes internally threaded jackscrews and 5mm board mount studs for secure fastening. Contacts are phosphor bronze with hard acid gold finish (98% purity) rated for up to 2.2A per contact with all contacts loaded at 85°C ambient, and up to 800VAC/DC.



The housing is molded from glass-filled PPS (UL94 V-0), with an operating temperature range of -55°C to 125°C. Keying slots, mating flanges, and mounting hardware ensure proper alignment and retention. The connector is suited for high-density electronic equipment requiring reliable interconnection.

M80-5131605 Quick Information

Product Type: Header, Male Pins
Series: J-Tek
Canonical Name: Harwin Datamate J-Tek Male Plug, 16 Position (8+8), 2.00mm Pitch, Surface Mount, Gold
Subcategory: Shrouded Header

M80-5131605 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

M80-5131605 Estimated Pricing

Qty Low High
1,000+ $16.20 $16.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

M80-5131605 Features

  • 16-position (8+8) dual-row surface mount header.
  • 2.00mm pitch with gold-plated phosphor bronze contacts.
  • Rated for 800VAC/DC and 2.2A per contact at 85°C.
  • Fully shrouded with threaded jackscrews for secure mating.
  • Operates from -55°C to 125°C with UL94 V-0 insulation.

M80-5131605 Applications

  • Board-to-board connections in high-density electronics.
  • Cable-to-board interfaces requiring secure fastening.
  • Industrial and aerospace applications up to 125°C.
  • Signal and power distribution in Datamate systems.

M80-5131605 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

16 positions in a dual-row (8+8) configuration.

What is the pitch of this connector?

2.00mm (0.079").

What is the current rating?

Up to 2.2A with all contacts loaded at 85°C ambient, 3.0A at 25°C; single contact up to 3.3A at 25°C and 2.6A at 85°C.

What is the voltage rating?

800VAC/DC.

What mounting type does this connector use?

Surface mount with solder termination.

What is the operating temperature range?

-55°C to 125°C.

What are the contact materials and finish?

Phosphor bronze with gold plating (98% purity hard acid gold).
