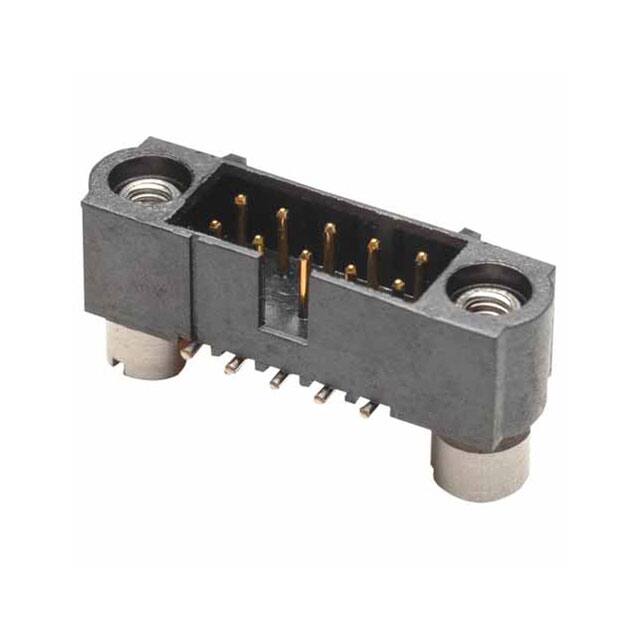

The Harwin M80-5121442 is a 14-position male pin header from the Datamate M80 series, designed for board-to-board or cable-to-board interconnections. It features a 2.00mm pitch, 2 rows, and a fully shrouded 4-wall housing made from glass-filled PPS (UL94 V-0). The connector uses surface mount solder termination and includes threaded fastening for secure mating.
Electrical ratings include a current rating of 2.2A per contact and a voltage rating of 800V. The operating temperature range is -55°C to 125°C. Contacts are made of phosphor bronze with a tin finish (29.5µin thickness). The insulation is black and has a height of 5.95mm.
This connector is suitable for applications requiring a robust, polarized connection with keying slots and mounting flanges. It is part of the Datamate family, which is intended for high packing density electronic equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $19.62 | $19.62 |
| 11+ | $16.56 | $16.56 |
| 110+ | $14.08 | $14.08 |
| 506+ | $12.64 | $12.64 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.00mm (0.079 inches).
It has 14 positions arranged in 2 rows.
The current rating is 2.2A per contact.
The voltage rating is 800V.
The mounting type is surface mount (SMD).
The operating temperature range is -55°C to 125°C.
The contact material is phosphor bronze with a tin finish (29.5µin thickness).
