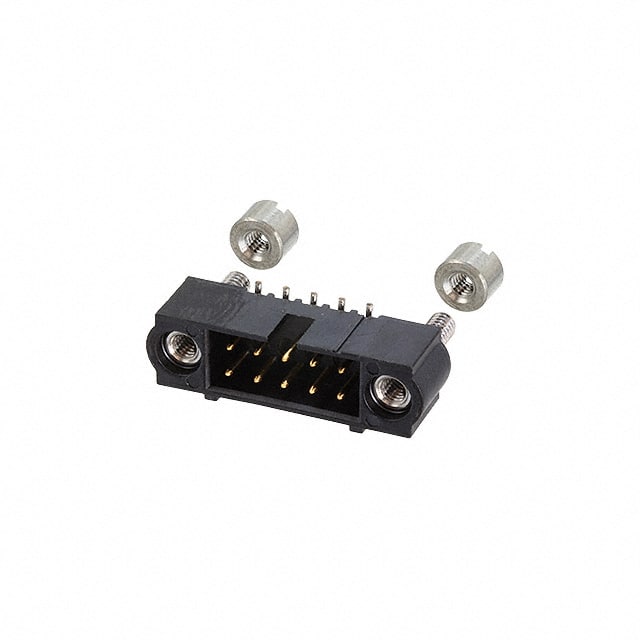

The Harwin M80-5121042 is a 10-position, 2-row male pin header from the Datamate J-Tek series, designed for board-to-board or cable interconnection. It features a 2.00mm pitch and row spacing, with a fully shrouded 4-wall housing that provides robust protection for the male pins. The connector uses a threaded fastening type and includes keying slots, mating flanges, and mounting flanges with hardware for secure panel or board mounting.
The header is rated for a maximum current of 3.0A per contact at 25°C ambient (derated to 2.2A at 85°C) and a voltage rating of 800V. It operates over a temperature range of -55°C to 125°C. The insulation is made of glass-filled polyphenylene sulfide (PPS) with a UL94 V-0 flammability rating. Contacts are phosphor bronze with a tin finish (0.75µm thickness).
This surface mount (SMD) component is suitable for automated assembly processes. The Datamate series is known for high-reliability applications in industrial, aerospace, and defense electronics where secure connections under vibration are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $18.26 | $18.26 |
| 13+ | $15.23 | $15.23 |
| 104+ | $13.16 | $13.16 |
| 507+ | $11.77 | $11.77 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.00mm (0.079").
It has 10 positions arranged in 2 rows.
The maximum current rating is 3.0A per contact at 25°C ambient, derated to 2.2A at 85°C ambient.
The voltage rating is 800V.
It uses surface mount (SMD) termination with solder.
The operating temperature range is -55°C to 125°C.
The contacts are made of phosphor bronze with a tin finish (0.75µm thickness).
