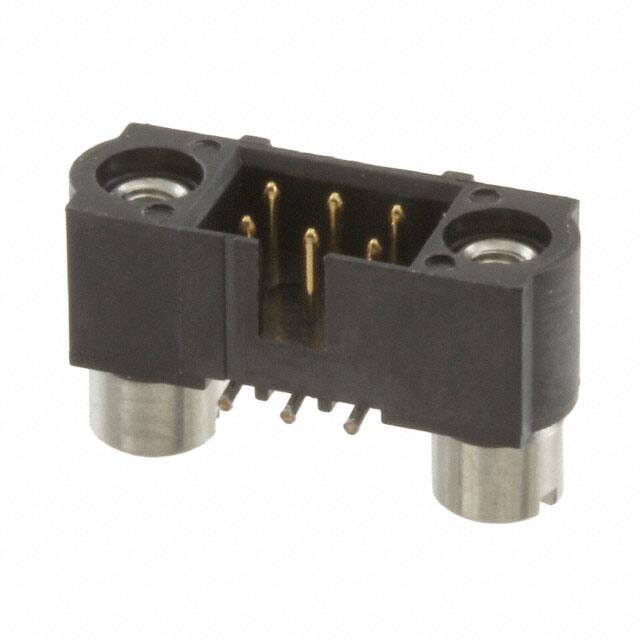

The M80-5120642 is a 6 position (3+3) male pin header from Harwin's Datamate J-Tek series, designed for high-reliability interconnections. This shrouded connector features a 2.00mm pitch with two rows and a 4-wall shroud for protection. It is terminated via surface mount soldering and includes threaded jackscrews and board mount studs for secure fastening.
Electrical ratings include a voltage rating of 800V and current rating up to 3.3A per contact at 25°C ambient, derated to 2.2A when all contacts are at 85°C. The contacts are made of phosphor bronze with a gold finish of 0.75µm thickness. The insulation is black glass-filled Polyphenylene Sulfide (PPS) with a flammability rating of UL94 V-0.
The connector operates over a temperature range of -55°C to 125°C. It is suitable for board-to-board and cable-to-board applications requiring robust mechanical retention. The package includes slotted nuts for board mount retention. This connector is part of the Datamate M80 series, known for high packing density and reliability.
| Qty | Low | High |
|---|---|---|
| 1+ | $16.99 | $16.99 |
| 16+ | $13.96 | $13.96 |
| 112+ | $12.17 | $12.17 |
| 512+ | $10.94 | $10.94 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions (3+3).
2.00mm.
Up to 3.3A per contact at 25°C ambient, derated to 2.2A when all contacts are at 85°C.
800V.
Surface Mount.
Yes, it has a shrouded 4-wall design.
Threaded jackscrews with board mount studs.
