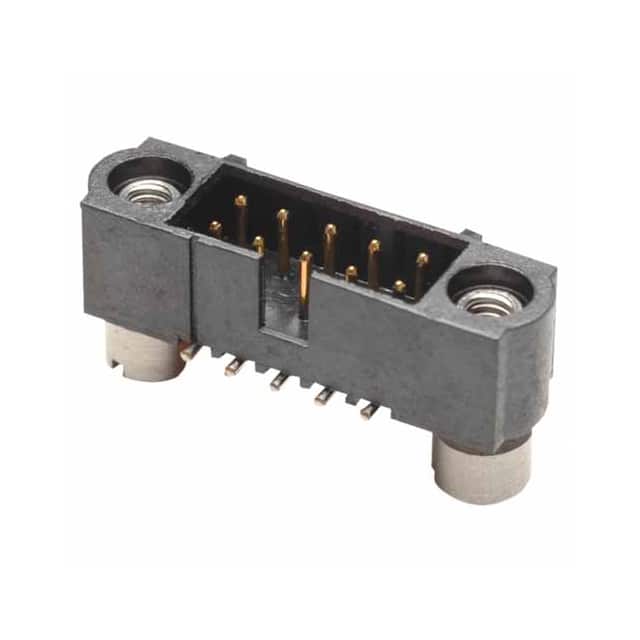

The M80-5120442 is a 4-position (2+2) male header from Harwin's Datamate J-Tek series of high-reliability connectors. It features a 2.00mm pitch and a double row straight configuration, designed for surface mount (SMT) assembly. The connector is fully shrouded with a 4-wall design and includes threaded jackscrews for secure mating, along with board mount studs for additional retention.
Key specifications include a current rating of 2.2A per contact (all contacts at 85°C) and a voltage rating of 800V. The operating temperature range is -55°C to 125°C. The insulation is made of glass-filled Polyphenylene Sulfide (PPS) with a UL94 V-0 flammability rating, and the contacts are phosphor bronze with a tin finish.
This connector is suitable for board-to-board or cable connections in applications requiring high reliability and secure fastening. The surface mount termination allows for efficient automated assembly. The Datamate J-Tek series is known for its robust design and is used in industrial, aerospace, and other demanding environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $17.50 | $17.50 |
| 18+ | $14.27 | $14.27 |
| 108+ | $12.57 | $12.57 |
| 504+ | $11.28 | $11.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The M80-5120442 has 4 positions (2+2).
The pitch is 2.00mm (0.079 inches).
The current rating is 2.2A per contact when all contacts are at 85°C ambient.
The voltage rating is 800V.
The mounting type is surface mount (SMT) with solder termination.
The operating temperature range is -55°C to 125°C.
The contact finish is tin with a thickness of 0.76µm (30.0µin).
