| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
72 pcs
|
72 pcs | On Request | 1 | On Request | On Request | 1547 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

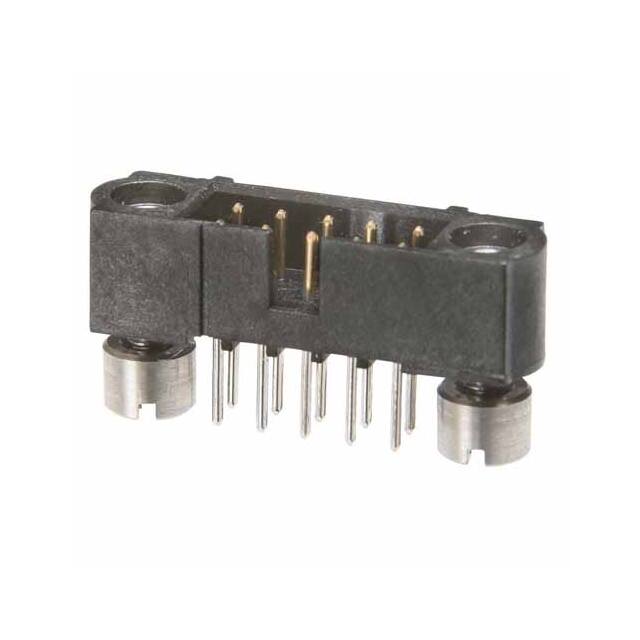

The M80-5110442 is a 4-position (2+2) male header from the Harwin Datamate J-Tek series. It is a high-reliability connector designed for board-to-board or cable applications.
Mechanically, it features a 2.00mm pitch with 2 rows, a shrouded 4-wall design, and threaded fastening with jackscrews. The contact finish is gold+tin with 0.75µm thickness on phosphor bronze contacts. The insulation is black PPS glass-filled with a UL94 V-0 flammability rating.
Electrically, it is rated for 2.2A current and 800V voltage, with an operating temperature range of -55°C to 125°C.
The connector is through-hole mounted with solder termination and straight lead style. It includes board mount studs (5mm) and slotted nuts (M80-2130000B) for PCB retention.
| Qty | Low | High |
|---|---|---|
| 1+ | $11.98 | $11.98 |
| 18+ | $9.77 | $9.77 |
| 108+ | $8.61 | $8.61 |
| 504+ | $7.72 | $7.72 |
| 1,008+ | $7.35 | $7.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions (2+2).
2.00mm.
2.2A.
800V.
Through hole.
-55°C to 125°C.
Gold+tin with 0.75µm thickness.
