| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish - Mating | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

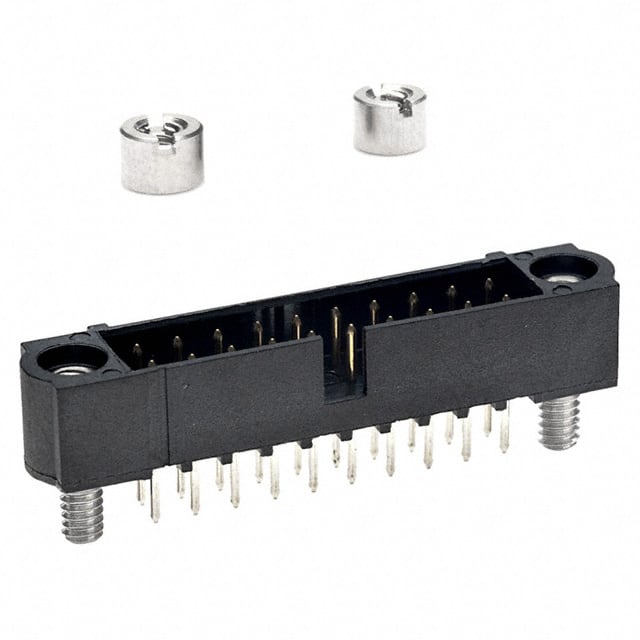

The M80-5102042 is a 20-position (10+10) male pin header from Harwin's Datamate J-Tek series. It features a 2.00mm pitch dual-row configuration with a shrouded 4-wall housing for robust protection. The connector is designed for through hole mounting with straight solder terminations, making it suitable for board-to-board and cable-to-board applications.
This header is equipped with threaded jackscrews and board mount studs for secure fastening, ensuring reliable mating in high-vibration environments. The contacts are made of phosphor bronze with gold plating on the mating area and tin on the termination area, providing excellent conductivity and corrosion resistance. The contact finish thickness is 0.75µm (29.5µin).
The insulation is molded from glass-filled polyphenylene sulfide (PPS) in black, rated UL94 V-0 for flammability. The operating temperature range is -55°C to 125°C. Electrical ratings include a voltage rating of 800V and current ratings up to 3.3A per contact (one contact loaded at 25°C) or 2.2A when all contacts are loaded at 85°C.
The connector includes keying slots and mounting flanges for alignment and secure attachment. It is part of the Datamate J-Tek series, known for high-reliability interconnections in demanding applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $17.62 | $17.62 |
| 16+ | $14.49 | $14.49 |
| 104+ | $12.70 | $12.70 |
| 504+ | $11.36 | $11.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions (10+10).
2.00mm.
The current rating depends on conditions: 3.3A per contact (one contact loaded at 25°C), 2.6A (one contact at 85°C), 3.0A (all contacts at 25°C), and 2.2A (all contacts at 85°C).
800V.
Through hole.
-55°C to 125°C.
Datamate J-Tek series from Harwin.
