| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

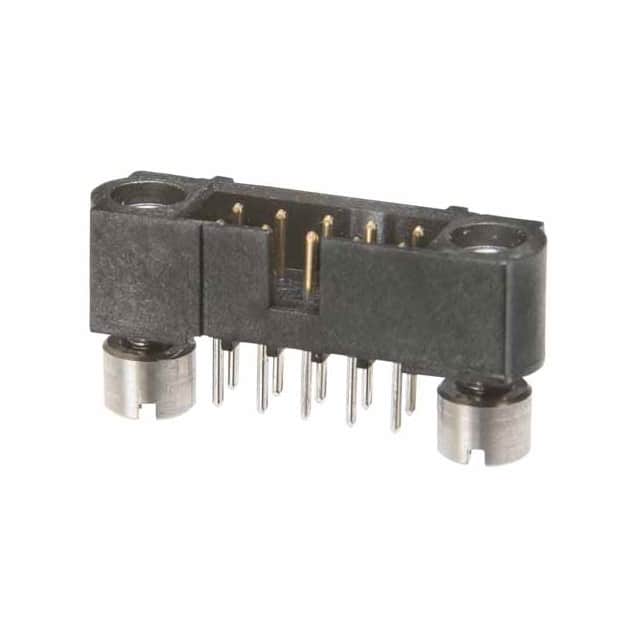

The Harwin M80-5102005 is a 20-position (10+10) male pin header from the Datamate J-Tek series, designed for high-reliability board-to-board or cable-to-board interconnections. This shrouded, 4-wall header features a 2.00mm pitch and a straight (vertical) through-hole termination with 3.3mm solder tails.
The connector is rated for up to 800V and offers multiple current ratings: 3.0A with all contacts energized at 25°C, and 2.2A with all contacts at 85°C. The contacts are made of phosphor bronze with a gold finish (29.5µin), ensuring reliable low-resistance connections. The insulation is black glass-filled PPS (UL94 V-0), and the operating temperature range spans -55°C to 125°C.
Mechanical features include threaded jackscrews for secure mating, keying slots for polarization, and mounting flanges with board-mount studs. The connector is RoHS3 compliant and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $18.84 | $18.84 |
| 16+ | $15.49 | $15.49 |
| 104+ | $13.58 | $13.58 |
| 504+ | $12.15 | $12.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The M80-5102005 has 20 positions arranged as 10+10 in two rows.
The pitch is 2.00mm (0.079 inches).
The current rating is 3.0A with all contacts energized at 25°C ambient, and 2.2A with all contacts at 85°C ambient.
The voltage rating is 800V.
It uses through-hole mounting with solder termination.
The operating temperature range is -55°C to 125°C.
Yes, it is listed as RoHS3 compliant.
