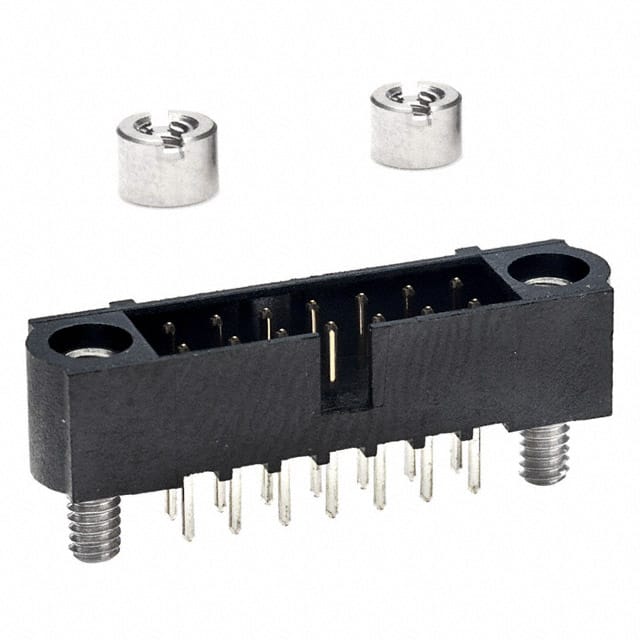

The Harwin M80-5101442 is a 14-contact (7+7) male pin header from the Datamate J-Tek series, designed for high-reliability board-to-board and cable-to-board interconnections. It features a 2.00mm pitch with 2 rows, a shrouded 4-wall design for contact protection, and through hole mounting with solder termination. The connector is fitted with internally threaded jackscrews and 3.5mm board mount studs for secure fastening, supplied with slotted nuts for board retention.
Electrical ratings include a current capacity of 2.2A per contact when all contacts are loaded at 85°C ambient, with higher ratings for single-contact loading (3.3A at 25°C, 2.6A at 85°C). The voltage rating is 800V. The operating temperature range is -55°C to 125°C. Contacts are made of phosphor bronze with tin plating (29.5µin thickness) and have a circular shape with a 3.30mm contact length.
The insulation is black glass-filled Polyphenylene Sulfide (PPS) with a UL94 V-0 flammability rating. The connector includes keying slots, mating flanges, and mounting hardware. It is suitable for applications requiring robust mechanical retention and reliable electrical performance in demanding environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $16.35 | $16.35 |
| 11+ | $13.80 | $13.80 |
| 110+ | $11.73 | $11.73 |
| 506+ | $10.53 | $10.53 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
14 positions (7+7) in 2 rows.
2.00mm (0.079 inches).
2.2A per contact when all contacts are loaded at 85°C ambient. Higher ratings apply for single-contact loading: 3.3A at 25°C and 2.6A at 85°C.
800V.
Through hole with solder termination.
-55°C to 125°C.
Phosphor bronze contacts with tin plating (29.5µin / 0.75µm thickness).
