| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

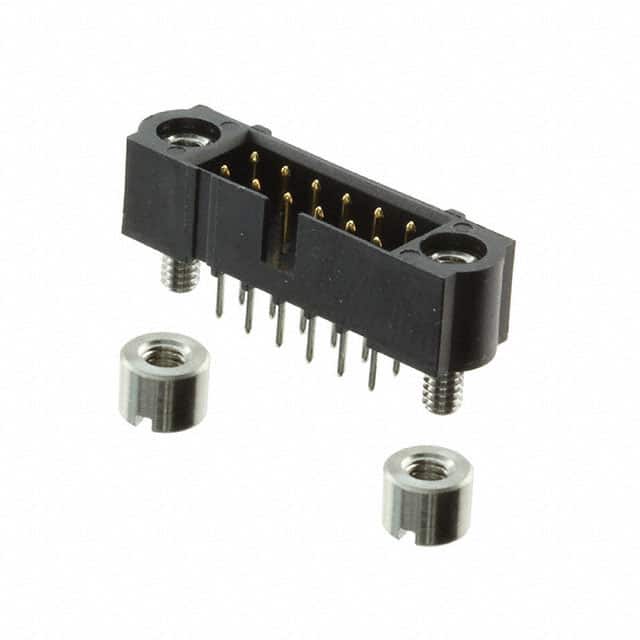

The Harwin M80-5101242 is a 12-position male header from the Datamate series, featuring a fully shrouded 4-wall design for robust mating and protection. It has 2 rows with a 2.00mm pitch and 2.00mm row spacing, making it suitable for high-density board-to-board or cable-to-board applications.
Electrical ratings include a maximum current of 3.0A when all contacts are energized at 25°C ambient, derated to 2.2A at 85°C, and a voltage rating of 800V. The operating temperature range spans -55°C to 125°C, with a UL94 V-0 flammability rating for the glass-filled PPS insulation.
The contacts are made of phosphor bronze with a tin finish (29.5µin thickness), and the connector uses a threaded fastening type for secure locking. Mounting is through hole with solder termination, and the header includes features such as a keying slot, mating flange, and mounting hardware for reliable assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $12.58 | $12.58 |
| 12+ | $10.56 | $10.56 |
| 108+ | $9.04 | $9.04 |
| 504+ | $8.11 | $8.11 |
| 1,008+ | $7.72 | $7.72 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The M80-5101242 has 12 positions, all loaded.
The pitch is 2.00mm (0.079 inches).
The maximum current rating is 3.0A when all contacts are energized at 25°C, derated to 2.2A at 85°C.
The voltage rating is 800V.
The mounting type is through hole with solder termination.
The operating temperature range is -55°C to 125°C.
The insulation material is Polyphenylene Sulfide (PPS), glass filled, with a UL94 V-0 flammability rating.
