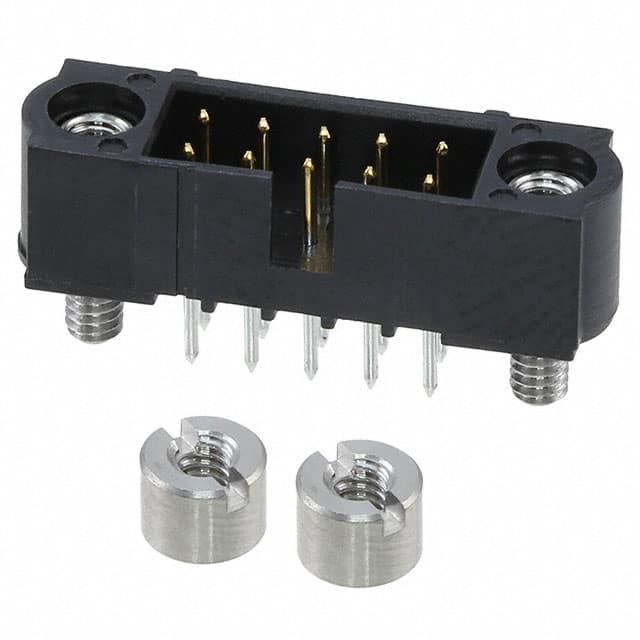

The Harwin M80-5101022 is a 10 position, 2 row male pin header from the Datamate M80 series of rectangular connectors. It features a 2.00mm pitch and a through hole mounting style with solder termination. The connector is fully shrouded with a 4-wall design and includes a threaded fastening type for secure mating.
This header is rated for an operating voltage of 800V and has a current rating of up to 3.3A per contact at 25°C ambient. The contacts are made of phosphor bronze with a tin-lead finish and have a circular contact shape. The insulation is black glass filled polyphenylene sulfide (PPS) with a UL94 V-0 flammability rating.
The M80-5101022 is designed for board to board or cable applications and includes features such as a keying slot, mating flange, mounting flange, and mounting hardware. It has an operating temperature range of -55°C to 125°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $15.22 | $15.22 |
| 13+ | $12.69 | $12.69 |
| 104+ | $10.96 | $10.96 |
| 507+ | $9.80 | $9.80 |
| 1,001+ | $9.34 | $9.34 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The M80-5101022 has 10 positions arranged in 2 rows.
The pitch is 2.00mm.
The voltage rating is 800V.
The current rating is up to 3.3A per contact at 25°C ambient.
The mounting type is through hole.
The operating temperature range is -55°C to 125°C.
The contact material is phosphor bronze with a tin-lead finish.
