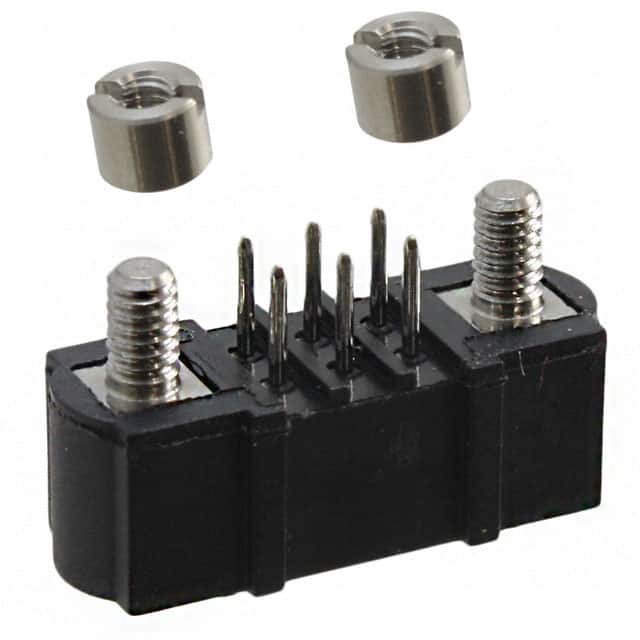

The M80-5100642 is a 6-contact (3+3) male plug connector from Harwin's Datamate J-Tek series of high-reliability rectangular connectors. It is a through-hole mounted header with a 2.00mm pitch and two rows of male pins. The connector features a fully shrouded 4-wall design with internally threaded jackscrews for secure mating and board mount studs.
Electrical specifications include a current rating of 3.3A per contact at 25°C ambient (derated to 2.2A when all contacts are used at 85°C) and a voltage rating of 800V. The operating temperature range is -55°C to +125°C. The contacts are made of phosphor bronze with a gold mating finish (0.75µm) and tin post finish.
The insulation is glass-filled Polyphenylene Sulfide (PPS) in black, with a flammability rating of UL94 V-0. The connector includes keying slots and mounting flanges/hardware, making it suitable for board-to-board or cable-to-board applications requiring high reliability. Termination is via 3.3mm solder posts.
| Qty | Low | High |
|---|---|---|
| 1+ | $15.26 | $15.26 |
| 16+ | $12.55 | $12.55 |
| 112+ | $10.94 | $10.94 |
| 512+ | $9.83 | $9.83 |
| 1,008+ | $9.37 | $9.37 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions (3+3) in 2 rows.
2.00mm
3.3A per contact at 25°C ambient (single contact), derated to 2.2A when all contacts are used at 85°C ambient.
800V
Through hole with solder termination.
-55°C to +125°C
Black glass-filled PPS with UL94 V-0 rating.
