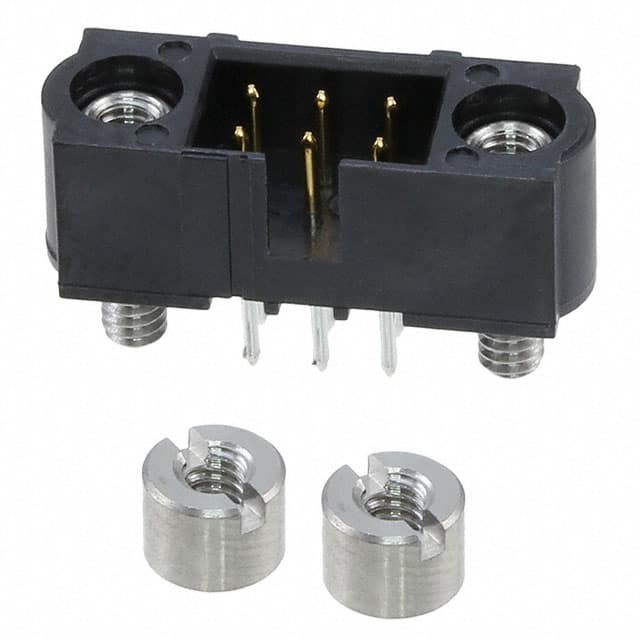

The Harwin M80-5100622 is a Datamate J-Tek series male pin header designed for high-reliability board-to-board and cable-to-board interconnections. It features 6 positions arranged in a 2-row configuration with a 2.00mm pitch and 2.00mm row spacing. The connector uses a through hole mounting style with solder termination and a 3.30mm post length.
The header is fully shrouded with a 4-wall design and includes keying slots, mating flanges, mounting flanges, and mounting hardware for secure panel or board attachment. The insulation is made from glass-filled Polyphenylene Sulfide (PPS) rated UL94 V-0, and the contacts are phosphor bronze with a tin-lead finish.
Electrically, the connector is rated for 800V and carries a maximum current of 2.2A when all contacts are loaded at 85°C ambient. The operating temperature range spans -55°C to 125°C, making it suitable for demanding environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $14.69 | $14.69 |
| 16+ | $12.08 | $12.08 |
| 112+ | $10.53 | $10.53 |
| 512+ | $9.46 | $9.46 |
| 1,008+ | $9.02 | $9.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The M80-5100622 has 6 positions arranged as 3+3 in a double row.
The pitch is 2.00mm (0.079") with a row spacing of 2.00mm.
The voltage rating is 800V.
The maximum current rating is 2.2A when all contacts are loaded at 85°C ambient.
It uses through hole mounting with solder termination.
The operating temperature range is -55°C to 125°C.
The fastening type is threaded, with internally threaded jackscrews and board mount studs.
