M80-5020642 Harwin M80-5020642 is a 6-position (2x3) 2mm pitch male pin header, surface mount, shrouded with jackscrews. It features phosphor bronze contacts with tin-lead finish and is rated for up to 3.3A per contact.
Mfr Part #:

M80-5020642

Available from 1 distributors
Mfr Name: Harwin Inc.
Harwin Inc.
Harwin M80-5020642 is a 6-position (2x3) 2mm pitch male pin header, surface mount, shrouded with jackscrews. It features phosphor bronze contacts with tin-lead finish and is rated for up to 3.3A per contact.
✓ Total Stock: 12 pcs
$ Price Range: $9.16 - $14.92

M80-5020642 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
12 pcs
On Request
12 pcs On Request 1 On Request On Request 17+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

M80-5020642 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Termination
Termination Style
Voltage Rating
View Similar Products (0)

M80-5020642 Description

Short technical summary and product information.

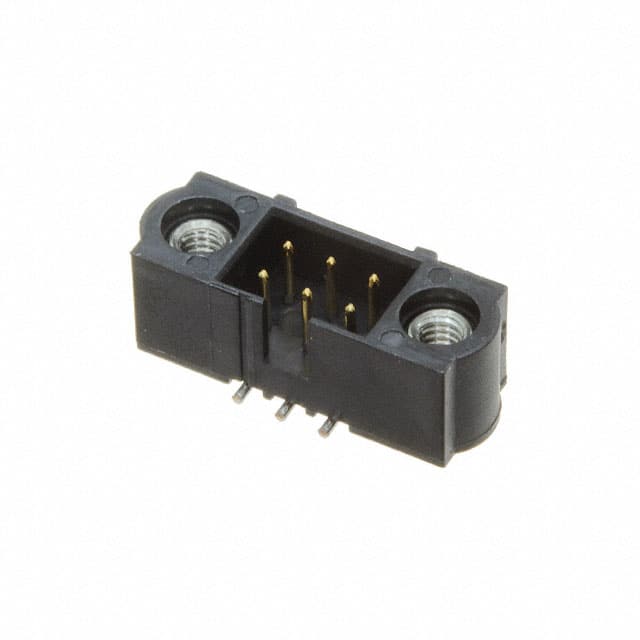

The Harwin M80-5020642 is a 6-position (2x3) male pin header from the Datamate J-Tek series, designed for high-reliability interconnections. It features a 2.00mm pitch, double-row configuration, and a shrouded 4-wall housing with threaded jackscrews for secure mating. The connector supports surface mount solder termination and is suitable for board-to-board or cable-to-board applications.



Electrical ratings include a maximum current of 3.3A per single contact at 25°C ambient, with derating at higher temperatures and when all contacts are loaded. The voltage rating is 800V. Operating temperature ranges from -55°C to 125°C. Contacts are made of phosphor bronze with tin-lead finish on terminations and gold on contact areas per manufacturer specifications.



The insulator is black glass-filled Polyphenylene Sulfide (PPS) with a UL94 V-0 flammability rating. Additional features include a keying slot and mating flange. The connector is packaged in tubes.

M80-5020642 Quick Information

Product Type: Male Pin Header
Series: M80
Canonical Name: Harwin M80-5020642 6-Position (2x3) 2mm Pitch Male Header, Surface Mount, Shrouded, with Jackscrews
Subcategory: Male Pins

M80-5020642 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: No

M80-5020642 Estimated Pricing

Qty Low High
1+ $14.92 $14.92
16+ $12.27 $12.27
112+ $10.69 $10.69
512+ $9.61 $9.61
1,008+ $9.16 $9.16

Estimated market price range - modelled values for guidance only, not live distributor offers.

M80-5020642 Features

  • 6 positions in 2x3 arrangement.
  • 2.00mm pitch for compact designs.
  • Shrouded 4-wall housing with jackscrews.
  • Rated up to 3.3A per contact.
  • Surface mount solder termination.

M80-5020642 Applications

  • Board-to-board interconnections in electronics.
  • Cable-to-board connections in industrial systems.
  • High-reliability applications requiring secure mating.

M80-5020642 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the M80-5020642 have?

6 positions (3+3 in two rows).

What is the pitch of this connector?

2.00mm.

What is the current rating?

Up to 3.3A per single contact at 25°C ambient; derated at higher temperatures and when all contacts are loaded.

What is the voltage rating?

800V.

What is the mounting type?

Surface mount.

What is the operating temperature range?

-55°C to 125°C.

What is the insulation material and flammability rating?

Glass-filled Polyphenylene Sulfide (PPS) with UL94 V-0 rating.
