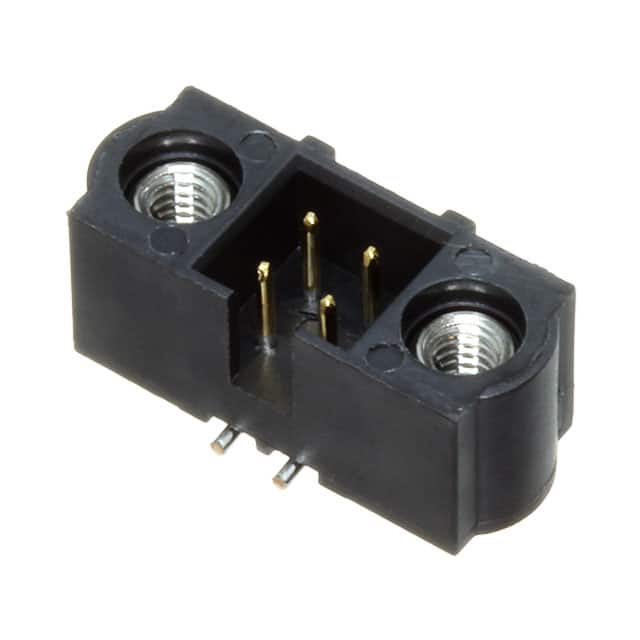

The Harwin M80-5020442 is a high-reliability male pin header from the Datamate J-Tek range, designed for board-to-board or cable connections. This 4-position (2+2) connector features a double row layout with a 2.00mm pitch and is surface mount (SMT) terminated. The connector is fully shrouded with a 4-wall design and includes keying slots and a mating flange for secure alignment.
Electrical specifications include a current rating of 2.2A per contact when all contacts are loaded (85°C ambient) and 3.0A at 25°C. The voltage rating is 800V. The connector operates over a temperature range of -55°C to 125°C. Contacts are made of phosphor bronze with gold plating on the mating area and tin on the terminations. The insulation is black glass-filled PPS with UL94 V-0 flammability rating.
This header is packaged in tubes and is RoHS compliant (unverified). It is suitable for use in high-density electronic equipment where reliable connections are essential. The threaded jackscrews provide additional mechanical retention.
| Qty | Low | High |
|---|---|---|
| 1+ | $17.58 | $17.58 |
| 18+ | $14.34 | $14.34 |
| 108+ | $12.63 | $12.63 |
| 504+ | $11.33 | $11.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions (2+2).
2.00mm.
2.2A per contact when all contacts loaded at 85°C ambient; 3.3A per contact single contact at 25°C.
800V.
Surface Mount (SMT).
-55°C to 125°C.
Gold on mating area, tin on termination.
