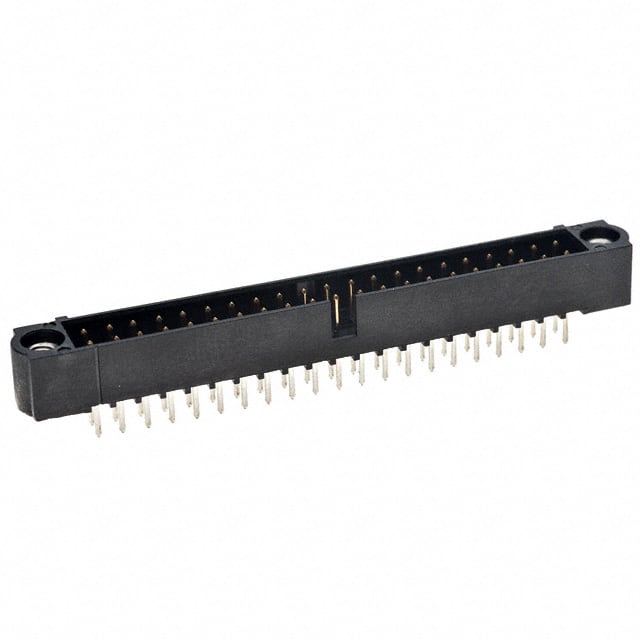

The M80-5004242 is a 42-position (21+21) male pin header from Harwin's Datamate J-Tek series, featuring a 2.00mm pitch and 2.00mm row spacing. It uses a through-hole solder termination with a shrouded 4-wall design and threaded jackscrews for secure mating.
Electrical ratings include a maximum current of 3.0A per contact when all contacts are loaded at 25°C (derated to 2.2A at 85°C) and a voltage rating of 120V. The contact material is phosphor bronze with tin finish (29.5µin) on terminations and gold on contact areas. Operating temperature ranges from -55°C to 125°C.
Mechanical features include keying slots and mating flanges for polarization. The insulator is black glass-filled PPS rated UL94 V-0 for flammability. This connector is suitable for board-to-board and cable-to-board applications requiring high reliability.
Contact shape is circular with a length of 3.25mm. The component is part of a versatile 2mm pitch system available in multiple configurations.
| Qty | Low | High |
|---|---|---|
| 1+ | $15.80 | $15.80 |
| 10+ | $13.43 | $13.43 |
| 100+ | $11.42 | $11.42 |
| 500+ | $10.19 | $10.19 |
| 1,000+ | $9.71 | $9.71 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
42 positions arranged in a 21+21 dual-row configuration.
2.00mm (0.079 inches).
3.0A per contact when all contacts are loaded at 25°C ambient.
120V.
Through hole.
-55°C to 125°C.
UL94 V-0.
